LAD703F | REMOTE TRIPPING 110V50/60 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LAD703F
Documents and manuals
Square D LAD703F Documents
Overview
Details for LAD703F

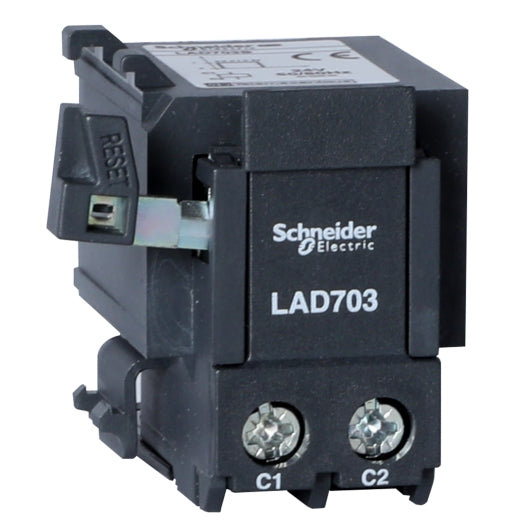

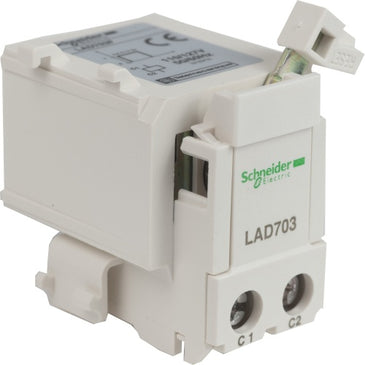

REMOTE TRIPPING 110V50/60
TeSys LRD remote control device for thermal overload relays LRD/LR3D D01-D35, D04L-D32L, D313-D380 and D313L-D365L. It provides a 110V AC/DC control circuit to perform a remote tripping and electrical reset. Left-hand side mounting on the thermal overload relay by clip-on. Green Premium compliant (RoHS/REACh).Specifications
- Range
- TeSys
- Product or component type
- Electrical remote stop
- device short name
- LAD
- accessory / separate part category
- Electrical accessory
- Product compatibility
- LR3D01...D35
LR3D313...LR3D365
LRD01...35
LRD313...LRD365
LR9G - [Uc] control circuit voltage
- 110 V AC 50/60 Hz
110 V DC - Maximum inrush power in VA
- 100 VA
- Inrush power in W
- 0…100 W
- Net weight
- 0.09 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.200 cm
- Package 1 Width
- 4.800 cm
- Package 1 Length
- 4.800 cm
- Package 1 Weight
- 106.000 g
- Unit Type of Package 2
- S01
- Number of Units in Package 2
- 32
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 15.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 3.568 kg
- Warranty
- 18 months
