LAD4RC3U | TeSys D D40A to D65A Suppressor Module, RC Circuit, 110-240 V AC <=400 Hz Pack of 10 | Square D by Schneider Electric

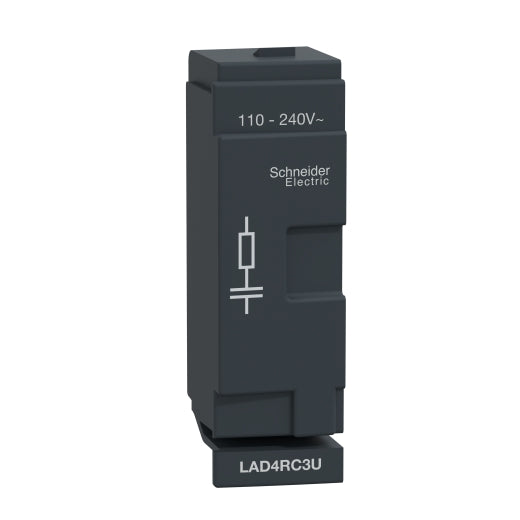

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to LAD4RC3U

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D LAD4RC3U Documents

Datasheet

Overview

Details for LAD4RC3U

TeSys D D40A to D65A Suppressor Module, RC Circuit, 110-240 V AC <=400 Hz

TeSys Deca suppressor module, for LC1D40A-D80A, LC1DT60A-DT80A contactors. To be used with 380-415V AC control circuit voltage, it provides a RC protection limiting the transient voltage to 3 Uc max. Clip-on front mounting, overall size of the contactor is unchanged. Green Premium compliant (RoHS/REACh).

Specifications

Range: TeSys
TeSys Deca
device short name: LAD4
Product or component type: Suppressor module
Product compatibility: 3P LC1D40A...D80A
4P LC1DT60A...DT80A
Mounting location: Front
Mounting mode: By clips
Suppressor technology: RC circuit
[Uc] control circuit voltage: 110...240 V AC
Maximum peak voltage: 3 Uc
Net weight: 0.04 kg
Colour: Dark grey
Standards: IEC 60947-5-1
EN 60947-5-1
CSA C22.2 No 60947-5-1
UL 60947-5-1
GB/T 14048.5
product certifications: UL
CSA
IP degree of protection: IP2X conforming to IEC 60529
Ambient air temperature for operation: -25…55 °C
Ambient air temperature for storage: -40…80 °C
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.500 cm
Package 1 Width: 5.000 cm
Package 1 Length: 8.000 cm
Package 1 Weight: 16.000 g
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 6.500 cm
Package 2 Width: 7.500 cm
Package 2 Length: 12.500 cm
Package 2 Weight: 185.000 g
Unit Type of Package 3: S01
Number of Units in Package 3: 100
Package 3 Height: 15.000 cm
Package 3 Width: 15.000 cm
Package 3 Length: 40.000 cm
Package 3 Weight: 2.070 kg
Warranty: 18 months
