JJL36250M75 | PowerPact J-Frame motor protector, 250 A, 3P, 25 kA at 600 VAC | Square D by Schneider Electric

Brand: Square DSKU: JJL36250M75

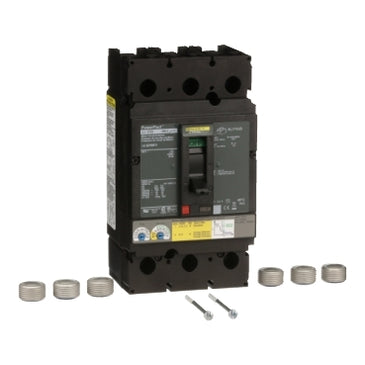

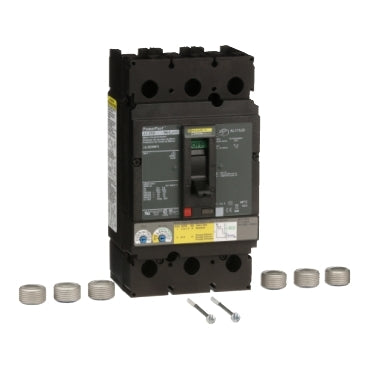

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to JJL36250M75

Jump to: Overview & Specifications Reviews

Overview Details for JJL36250M75

PowerPact J-Frame motor protector, 250 A, 3P, 25 kA at 600 VAC

PowerPacT J-Frame motor circuit protectors (MCP) are instantaneous-trip circuit breakers designed to offer short circuit protection for motors. The unique design of the PowerPacT MCPs accommodates transient motor inrush current without nuisance tripping. These motor protectors accept the same accessories and terminals as the PowerPacT J circuit breakers. This unit has lugs on both the line and load side. This PowerPacT J, 250A, 3 pole, motor protector has a breaking capacity of 25kA at 600VAC. The breaker has a continuous current rating of 80%. PowerPacT J motor circuit protectors comply to UL, CSA, and IEC standards and are CE marked.

Specifications

Product or Component Type: Motor Circuit Protector
Line Rated Current: 250 A
Number of Poles: 3P
Control Type: Toggle
breaking capacity code: J
breaking capacity: 100 kA 240 V AC 50/60 Hz UL 489;65 kA 480 V AC 50/60 Hz UL 489;25 kA 600 V AC 50/60 Hz UL 489;20 kA 250 V DC UL 489
[Ue] rated operational voltage: 600 V AC 50/60 Hz IEC 60947-3
Network Frequency: 50/60 Hz
[Ics] rated service breaking capacity: 65 kA 220/240 V AC 50/60 Hz IEC 60947-2;35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;18 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage: 8 kV IEC 60947-2
trip unit technology: Thermal-magnetic
[Ith] conventional free air thermal current: 117…217 A
magnetic tripping current: 2500 A
magnetic hold current: 1250 A
continuous current rating: 80 %
[Ui] rated insulation voltage: 750 V IEC 60947-2
Protection Type: Overload protection;Short-circuit protection
suitability for isolation: Yes IEC 60947-2
utilisation category: Category A
AWG gauge: AWG 3/0...350 kcmil aluminium/copper terminals
local signalling: Switched off (OFF) 1 trip indicator green)
mounting mode: Unit mount lug)
Mounting Support: Lug
electrical connection: Lugs line;Lugs load
terminal identifier: AL250JD
long time pick-up adjustment range: 0.25...1 x In
tightening torque: 221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
number of slots: 2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length: 0.98 in (25 mm)
Height: 7.52 in (191 mm)
Width: 4.09 in (104 mm)
Depth: 3.39 in (86 mm)
Net Weight: 5.29 lb(US) (2.4 kg)
communication interface: Modbus
quality labels: CE
Standards: UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications: UL;CSA;NOM
IP degree of protection: Front cover IP40
pollution degree: 3
Ambient air temperature for operation: 28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage: -58…185 °F (-50…85 °C)
operating altitude: < 6561.68 ft (2000 m) without derating;5000 m with derating
Category: 01125-HJ;JJ UNT MNT MTR CIRCUIT PROTECTR
Discount Schedule: DE2
GTIN: 785901541134
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.79 in (14.7 cm)
Package 1 Width: 7.28 in (18.5 cm)
Package 1 Length: 8.82 in (22.4 cm)
Package 1 Weight: 5.11 lb(US) (2.32 kg)
Warranty: 18 months
