JDA262002 | PowerPact J-Frame breaker, I-Line, thermal-magnetic, 200 A, 2P, 14 kA at 600 VAC | Square D by Schneider Electric
Get Special Pricing!
Log In or Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: Square DSKU: JDA262002

Web Price:

$1,415.14
Availability: CALL FOR AVAILABILITY
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms
Image for Technical Expert

Speak With a Technical Expert

Call (847) 773-0645

Hours: 9am - 5pm CDT M-F

JDA262002 | PowerPact J-Frame breaker, I-Line, thermal-magnetic, 200 A, 2P, 14 kA at 600 VAC | Square D by Schneider Electric

Square D | JDA262002

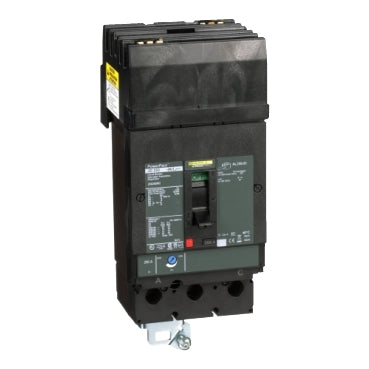

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to JDA262002

Documents and manuals

Square D JDA262002 Documents

Overview

Details for JDA262002

PowerPact J-Frame breaker, I-Line, thermal-magnetic, 200 A, 2P, 14 kA at 600 VAC

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT J I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT J, 200A, 2 pole, circuit breaker has a breaking capacity of 14kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an AC phase connection. PowerPacT J circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Specifications

Product or Component Type
Circuit breaker
Line Rated Current
200 A
Number of Poles
2P
Control Type
Toggle
breaking capacity code
D
breaking capacity
25 kA 240 V AC 50/60 Hz UL 489;18 kA 480 V AC 50/60 Hz;14 kA 600 V AC 50/60 Hz;20 kA 250 V DC
[Ue] rated operational voltage
600 V AC 50/60 Hz IEC 60947-3
Network Frequency
50/60 Hz
[Ics] rated service breaking capacity
25 kA 220/240 V AC 50/60 Hz IEC 60947-2;18 kA 380/440/415 V AC 50/60 Hz IEC 60947-2;14 kA 500/525 V AC 50/60 Hz IEC 60947-2;20 kA 250 V DC IEC 60947-2;20 kA 500 V DC IEC 60947-2
[Uimp] rated impulse withstand voltage
8 kV IEC 60947-2
trip unit technology
Thermal-magnetic
magnetic tripping current
2000 A
magnetic hold current
1000 A
continuous current rating
80 %
[Ui] rated insulation voltage
750 V IEC 60947-2
Protection Type
Overload protection;Short-circuit protection
suitability for isolation
Yes IEC 60947-2
utilisation category
Category A
AWG gauge
AWG 3/0...350 kcmil aluminium/copper terminals
local signalling
Switched off (OFF) 1 trip indicator green)
mounting mode
I-Line bracket)
Mounting Support
Bracket
electrical connection
I-Line connection line;Lugs load
terminal identifier
AL250JD
long time pick-up adjustment range
0.25...1 x In
Mounting Height
4.5 in (114.30 mm)
tightening torque
221.27 lbf.in (25 N.m) 0.15…0.29 in² (95…185 mm²) (AWG 3/0...350 kcmil)
number of slots
2 auxiliary switch OF plug-in);1 alarm switch SD plug-in);1 overcurrent trip switch SDE plug-in);1 voltage release MN or MX plug-in)
Power wire stripping length
0.98 in (25 mm)
Height
7.52 in (191 mm)
Width
4.09 in (104 mm)
Depth
3.39 in (86 mm)
Net Weight
5.29 lb(US) (2.4 kg)
phase connection
AC
communication interface
Modbus
circuit breaker application
HACR rated
quality labels
CE
Standards
UL;CSA;NEMA;NOM-003-SCFI-2000;IEC 60947-2
product certifications
UL;CSA;NOM
IP degree of protection
Front cover IP40
pollution degree
3
Ambient air temperature for operation
28…158 °F (-2…70 °C)
Ambient Air Temperature for Storage
-58…185 °F (-50…85 °C)
operating altitude
< 6561.68 ft (2000 m) without derating;5000 m with derating
Category
01112-HD;JD I-LINE BREAKER/SWITCH
Discount Schedule
DE2
GTIN
00785901912378
Returnability
No
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
6.00 in (15.24 cm)
Package 1 Width
8.50 in (21.59 cm)
Package 1 Length
15.00 in (38.1 cm)
Package 1 Weight
6.72 lb(US) (3.048 kg)
Warranty
18 months
