Documents: HU462AWK

Datasheet

HU462AWK | Safety switch, heavy duty, non fusible, 60A, 4 poles, 60 hp, 600 VAC/DC, NEMA 12 | Square D by Schneider Electric

Brand: Square DSKU: HU462AWK

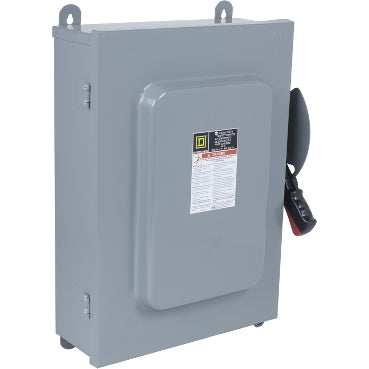

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HU462AWK

Jump to: Overview & Specifications Reviews

Overview Details for HU462AWK

Safety switch, heavy duty, non fusible, 60A, 4 poles, 60 hp, 600 VAC/DC, NEMA 12

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Specifications

Product: Single Throw Safety Switch
Duty Rating: Heavy duty
Device Application: Heavy application
Disconnect Type: Non-fusible disconnect
Factory Installed Neutral: None
Phase: 3 phase
Number of Poles: 4
Current Rating: 60 A
Voltage Rating: 600 V AC/DC
Enclosure Rating: NEMA 3R/12 galvannealed steel
Motor power hp: 20 hp at 240 V AC 50-60 Hz for 2 phases motors;20 hp at 240 V AC 50-60 Hz for 3 phase motors;40 hp at 480 V AC 50-60 Hz for 2 phases motors;50 hp at 480 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 2 phases motors;60 hp at 600 V AC 50-60 Hz for 3 phase motors;10 hp at 250 V DC;30 hp at 600 V DC
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 4-wire
Wire Size: AWG 14...AWG 3 copper;AWG 12...AWG 3 aluminium
tightening torque: 50 lbf.in (5.65 N.m) (AWG 3);45 lbf.in (5.08 N.m) (AWG 6...AWG 4);40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8);50 lbf.in (5.65 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
Depth: 6.8 in (172.72 mm)
Width: 16.13 in (409.70 mm)
Height: 20.5 in (520.70 mm)
Net Weight: 26.46 lb(US) (12 kg)
Certifications: UL listed file E2875
Category: 00116-H&HU SW;4&6P;N12;30-200A
Discount Schedule: DE1
GTIN: 785901505105
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.00 in (63.5 cm)
Package 1 Width: 7.13 in (18.11 cm)
Package 1 Length: 16.50 in (41.91 cm)
Package 1 Weight: 29.60 lb(US) (13.426 kg)
Warranty: 18 months
