HU461AWK | Safety switch, heavy duty, non fusible, 30A, 4 poles, 30 hp, 600 VAC/DC, NEMA 12 | Square D by Schneider Electric

Brand: Square DSKU: HU461AWK

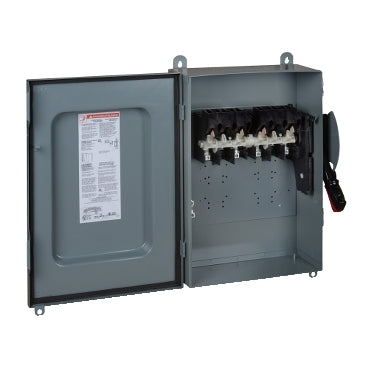

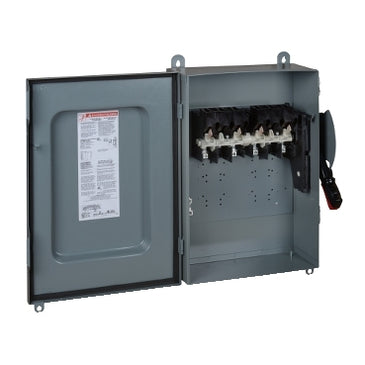

Square D | HU461AWK
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HU461AWK

Overview Details for HU461AWK

Safety switch, heavy duty, non fusible, 30A, 4 poles, 30 hp, 600 VAC/DC, NEMA 12

These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.

Specifications

Product
Single Throw Safety Switch
Duty Rating
Heavy duty
Device Application
Heavy application
Disconnect Type
Non-fusible disconnect
Factory Installed Neutral
None
Phase
3 phase
Number of Poles
4
Current Rating
30 A
Voltage Rating
600 V AC/DC
Enclosure Rating
NEMA 3R/12 galvannealed steel
Motor power hp
10 hp at 240 V AC 50-60 Hz for 2 phases motors;10 hp at 240 V AC 50-60 Hz for 3 phase motors;20 hp at 480 V AC 50-60 Hz for 2 phases motors;20 hp at 480 V AC 50-60 Hz for 3 phase motors;25 hp at 600 V AC 50-60 Hz for 2 phases motors;30 hp at 600 V AC 50-60 Hz for 3 phase motors;10 hp at 250 V DC;15 hp at 600 V DC
Mounting Type
Surface
Electrical Connection
Lugs
wiring configuration
4-wire
Wire Size
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
tightening torque
45 lbf.in (5.08 N.m) 0.02 in² (13.3 mm²) (AWG 6);40 lbf.in (4.52 N.m) 0.01 in² (8.367 mm²) (AWG 8);35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.06…5.261 mm²) (AWG 14...AWG 10)
Depth
6.8 in (172.72 mm)
Width
16.13 in (409.70 mm)
Height
20.5 in (520.70 mm)
Net Weight
26.46 lb(US) (12 kg)
Certifications
UL listed file E2875
Category
00116-H&HU SW;4&6P;N12;30-200A
Discount Schedule
DE1
GTIN
785901507819
Returnability
Yes
Country of origin
US
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
7.40 in (18.796 cm)
Package 1 Width
16.80 in (42.672 cm)
Package 1 Length
26.10 in (66.294 cm)
Package 1 Weight
29.00 lb(US) (13.154 kg)
Warranty
18 months
