HU362AWC | SWITCH NONFUSIBLE HD 60A CR-HI RECEP | Square D by Schneider Electric

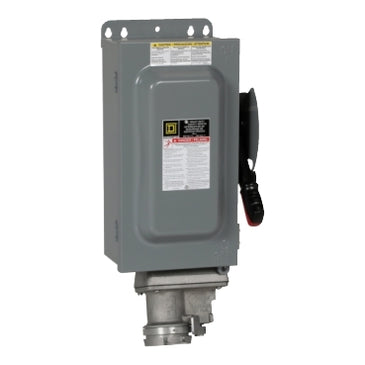

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HU362AWC
Documents and manuals
Square D HU362AWC Documents
Overview
Details for HU362AWC
SWITCH NONFUSIBLE HD 60A CR-HI RECEPSafety switch, heavy duty, non fusible, 60A, 600 VAC/VDC, 3 poles, 60 hp, NEMA 12K, crouse hinds arktiteThe Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable. These switches provide exceptional performance in the most grueling conditions, from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. Applications Heavy duty safety switches are designed for the following applications. Commercial and industrial installations. Up to 600 V ac or 600 V dc maximum. Up to 200,000 rms symmetrical amperes short circuit current. 30–1200 A. Horsepower ratings. Load-make, load-break rated for the switch current rating. Standards Heavy duty safety switches are manufactured in accordance with these standards. UL98, Standard for enclosed and dead front switches. UL Listed, — 30–200 A, see file E2875 — 400–1200 A, see file E154828. NEMA Standards Publication KS1 and KS2 enclosed switches.
Specifications
- Product
- Receptacle Switch
- For Use With
- Plug APJ6485 Crouse-Hinds Arktite
- Disconnect Type
- Non-fusible disconnect switch
- Phase
- 3 phase
- Number of Poles
- 3
- Current rating
- 60 A
- Voltage Rating
- 600 V AC;250 V DC
- Enclosure Rating NEMA 3R
- NEMA 12K
- Maximum Horse Power Rating
- 50 hp at 480 V AC 50-60 Hz for 3 phase motors;60 hp at 600 V AC 50-60 Hz for 3 phase motors;10 hp at 250 V DC
- Mounting Type
- Surface
- Electrical Connection
- Receptacle
- Wire Configuration
- 4-wire
- Wire Size
- AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
- tightening torque
- 45 lbf.in (5.08 N.m) (AWG 6...AWG 4);40 lbf.in (4.52 N.m) (AWG 8);35 lbf.in (3.95 N.m) (AWG 14...AWG 10)
- Depth
- 7 in (177.80 mm)
- Width
- 10.5 in (266.70 mm)
- Height
- 16.5 in (419.10 mm)
- Certifications
- UL Listed
- Category
- 00118-H&HU SW;W/C-HINDS RECPT-WC
- Discount Schedule
- DE1
- GTIN
- 785901195634
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.40 in (23.876 cm)
- Package 1 Width
- 12.00 in (30.48 cm)
- Package 1 Length
- 27.70 in (70.358 cm)
- Package 1 Weight
- 24.03 lb(US) (10.9 kg)
- Warranty
- 18 months
