HOMT1515250 | Tandem mini circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240 VAC, 10 kA AIR, plug in mount | Square D by Schneider Electric

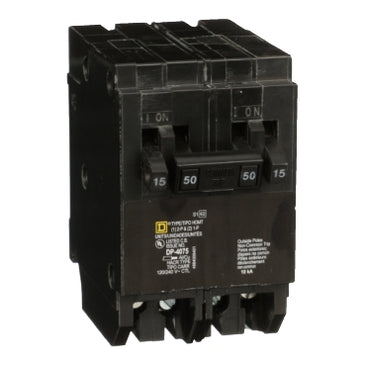

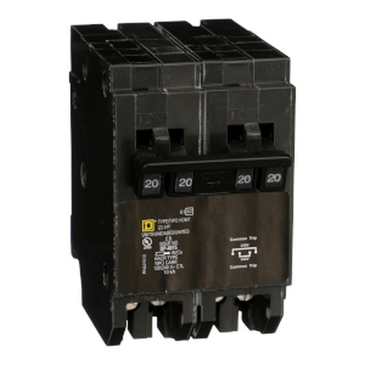

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOMT1515250
Documents and manuals
Square D HOMT1515250 Documents
Overview
Details for HOMT1515250
Tandem mini circuit breaker, Homeline, 2 x 1 pole at 15A, 1 x 2 pole at 50A, 120/240 VAC, 10 kA AIR, plug in mount
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This HOMT circuit breaker is a quad tandem breaker. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker in the middle and a single breaker on each side. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. The two pole breaker is rated 50A at 120/240 VAC and the single pole breakers are rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 2 pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or 12 AWG to 6 AWG aluminum wire. The single pole breakers of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 2.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 15 A;50 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 1P;2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2
- Circuit Breaker Type
- Quad tandem
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 14...AWG 6 copper)1;AWG 12...AWG 6 aluminium)1;AWG 12...AWG 8 aluminium)1
- tightening torque
- 40.71 lbf.in (4.6 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 14...AWG 6);40.71 lbf.in (4.6 N.m) 0.00…0.03 in² (2.5…20 mm²) (AWG 14...AWG 2)
- Height
- 3.13 in (79.50 mm)
- Width
- 2 in (50.80 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901377030
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.00 in (5.08 cm)
- Package 1 Width
- 3.00 in (7.62 cm)
- Package 1 Length
- 3.20 in (8.128 cm)
- Package 1 Weight
- 13.60 oz (385.554 g)
- Warranty
- Lifetime
