HOMT1515 | MINIATURE CIRCUIT BREAKER 120/240V 15A | Square D by Schneider Electric

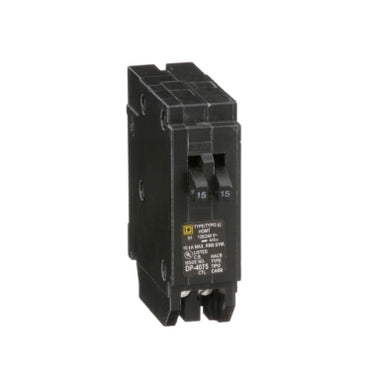

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HOMT1515

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D HOMT1515 Documents

Datasheet

Overview

Details for HOMT1515

MINIATURE CIRCUIT BREAKER 120/240V 15A

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 15A and 15A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 15 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 1P
Short Circuit Current Rating: 10 kA
Number of Spaces: 1
Circuit Breaker Type: Tandem
Ratings: HACR rated
Electrical Connection: Box lugs
Wire Size: AWG 14...AWG 8 aluminium/copper)1
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.01 in² (2.5…6 mm²) (AWG 14...AWG 8)
Height: 3.13 in (79.50 mm)
Width: 1 in (25.40 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule: DE3D
GTIN: 785901065388
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.00 in (2.54 cm)
Package 1 Width: 3.00 in (7.62 cm)
Package 1 Length: 3.20 in (8.128 cm)
Package 1 Weight: 7.20 oz (204.117 g)
Unit Type of Package 2: BB1
Number of Units in Package 2: 10
Package 2 Height: 3.30 in (8.382 cm)
Package 2 Width: 2.60 in (6.604 cm)
Package 2 Length: 10.10 in (25.654 cm)
Package 2 Weight: 4.50 lb(US) (2.041 kg)
Unit Type of Package 3: PAL
Number of Units in Package 3: 3600
Package 3 Height: 40.00 in (101.6 cm)
Package 3 Width: 40.00 in (101.6 cm)
Package 3 Length: 48.00 in (121.92 cm)
Package 3 Weight: 1648.00 lb(US) (747.52 kg)
Warranty: Lifetime
