HOM612L100S | LD CTR HOM MLO 240V100A 1PH6SP | Square D by Schneider Electric

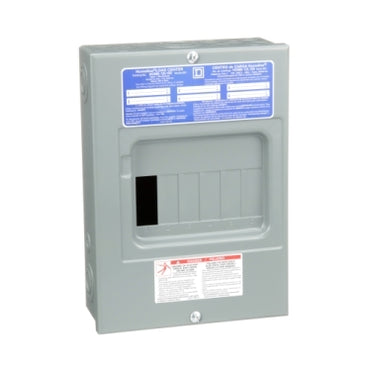

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM612L100S
Documents and manuals
Square D HOM612L100S Documents
Overview
Details for HOM612L100S
LD CTR HOM MLO 240V100A 1PH6SP
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center is supplied with fixed main lugs that are rated at 100A 120/240 VAC single phase. Homeline load center provides a 10 kA breaking capacity. This system provides 6 spaces in a NEMA 1 indoor enclosure. Has a surface cover. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or aluminum wire. This Homeline load center has a height of 12.55 inches, a width of 8.89 inches, and depth of 3.81 inches. Homeline load centers are UL Listed.Specifications
- Product Type
- Load Center
- Marketing Trade Name
- Homeline
- Load Center Type
- Main lugs
- Rated Current
- 100 A
- Number of Spaces
- 6
- Maximum Number of Single Pole Circuits
- 12
- Enclosure Rating
- NEMA 1 indoor
- Cover Type
- Surface cover
- Electrical Connection
- Lugs
- Max Short Circuit Current Rating
- 10 kA
- Maximum Number of Tandem Breakers
- 6
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 8...AWG 1 aluminium/copper
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated aluminium busbar
- Enclosure Material
- Welded sheet steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 4
- Height
- 12.56 in (319 mm)
- Depth
- 3.82 in (97 mm)
- Width
- 8.90 in (226 mm)
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL listed file E-6294
- Category
- 00149-HOM 2-8 CKT;MLO;NEMA1&3R
- Discount Schedule
- DE3C
- GTIN
- 785901061199
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.40 in (11.176 cm)
- Package 1 Width
- 10.50 in (26.67 cm)
- Package 1 Length
- 14.40 in (36.576 cm)
- Package 1 Weight
- 7.65 lb(US) (3.47 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 82
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 653.54 lb(US) (296.441 kg)
- Warranty
- Lifetime
