HOM260 | MINIATURE CIRCUIT BREAKER 120/240V 60A | Square D by Schneider Electric

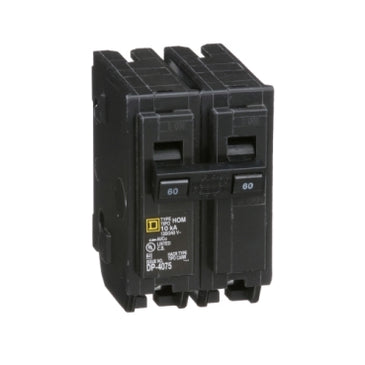

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM260
Documents and manuals
Square D HOM260 Documents
Overview
Details for HOM260
MINIATURE CIRCUIT BREAKER 120/240V 60A
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 60A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 60 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 8...AWG 2 aluminium/copper)1
- tightening torque
- 40.71 lbf.in (4.6 N.m) (AWG 8...AWG 2)
- Height
- 3.13 in (79.50 mm)
- Width
- 2 in (50.80 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901065333
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.78 in (7.05 cm)
- Package 1 Width
- 1.59 in (4.03 cm)
- Package 1 Length
- 3.15 in (8.0 cm)
- Package 1 Weight
- 11.20 oz (317.515 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 5
- Package 2 Height
- 3.10 in (7.874 cm)
- Package 2 Width
- 3.10 in (7.874 cm)
- Package 2 Length
- 10.10 in (25.654 cm)
- Package 2 Weight
- 3.58 lb(US) (1.625 kg)
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 50
- Package 3 Height
- 10.80 in (27.432 cm)
- Package 3 Width
- 7.00 in (17.78 cm)
- Package 3 Length
- 16.40 in (41.656 cm)
- Package 3 Weight
- 36.55 lb(US) (16.58 kg)
- Warranty
- Lifetime
