HOM235 | MINIATURE CIRCUIT BREAKER 120/240V 35A | Square D by Schneider Electric

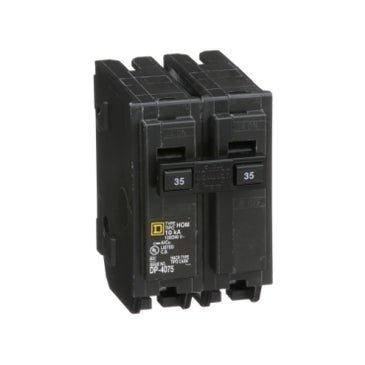

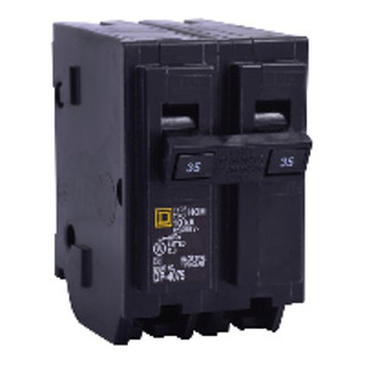

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HOM235
Documents and manuals
Square D HOM235 Documents
Overview
Details for HOM235
MINIATURE CIRCUIT BREAKER 120/240V 35A
Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 35A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.Specifications
- Product
- Miniature circuit-breaker
- Range
- Homeline
- Current Rating
- 35 A
- Certifications
- UL Listed
- Voltage Rating
- 120/240 V AC
- Mounting Type
- Plug-in
- Number of Poles
- 2P
- Short Circuit Current Rating
- 10 kA
- Number of Spaces
- 2
- Circuit Breaker Type
- Standard
- Ratings
- HACR rated
- Electrical Connection
- Box lugs
- Wire Size
- AWG 8...AWG 2 aluminium/copper)1
- tightening torque
- 40.71 lbf.in (4.6 N.m) (AWG 8...AWG 2)
- Height
- 3.13 in (79.50 mm)
- Width
- 2 in (50.80 mm)
- Depth
- 2.98 in (75.69 mm)
- Ambient air temperature for operation
- 104 °F (40 °C)
- Category
- 00046-HOM/T 15-30A 1P; 15-60A 2P
- Discount Schedule
- DE3D
- GTIN
- 785901065494
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.10 in (7.87 cm)
- Package 1 Width
- 2.00 in (5.08 cm)
- Package 1 Length
- 3.20 in (8.13 cm)
- Package 1 Weight
- 11.20 oz (317.52 g)
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 5
- Package 2 Height
- 3.20 in (8.128 cm)
- Package 2 Width
- 2.60 in (6.604 cm)
- Package 2 Length
- 10.20 in (25.908 cm)
- Package 2 Weight
- 3.61 lb(US) (1.637 kg)
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 50
- Package 3 Height
- 10.50 in (26.67 cm)
- Package 3 Width
- 7.10 in (18.034 cm)
- Package 3 Length
- 16.70 in (42.418 cm)
- Package 3 Weight
- 36.50 lb(US) (16.556 kg)
- Warranty
- Lifetime
