Details for HOM230

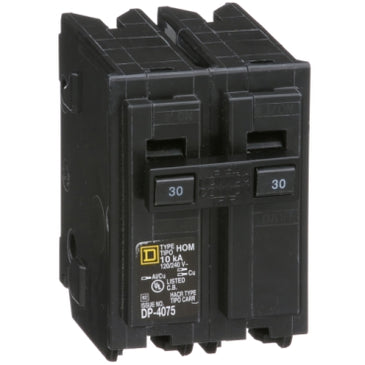

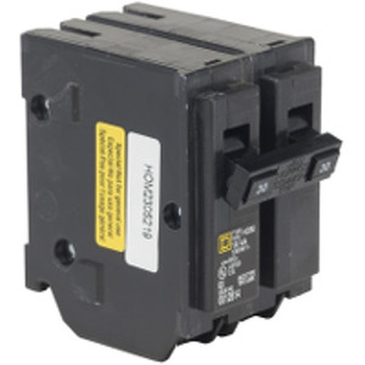

MINIATURE CIRCUIT BREAKER 120/240V 30A

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 30A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connection is a clamp terminal that will accept 2 wires. The clamp terminal will accept a wire range of 14 AWG to 8 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 1.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed.

Specifications

Product: Miniature circuit-breaker
Range: Homeline
Current Rating: 30 A
Certifications: UL Listed
Voltage Rating: 120/240 V AC
Mounting Type: Plug-in
Number of Poles: 2P
Short Circuit Current Rating: 10 kA
Number of Spaces: 2
Circuit Breaker Type: Standard
Ratings: HACR rated
Electrical Connection: Clamp terminal for 2 cables
Wire Size: AWG 14...AWG 8 aluminium/copper)1;AWG 14...AWG 10 copper)2
tightening torque: 35.40 lbf.in (4.0 N.m) 0.00…0.02 in² (2.5…10 mm²) (AWG 16...AWG 14);35.40 lbf.in (4.0 N.m) 0.01…0.03 in² (4…20 mm²) (AWG 12...AWG 4)
Height: 3.13 in (79.50 mm)
Width: 2 in (50.80 mm)
Depth: 2.98 in (75.69 mm)
Ambient air temperature for operation: 104 °F (40 °C)
Category: 00046-HOM/T 15-30A 1P; 15-60A 2P
Discount Schedule: DE3D
GTIN: 785901065296
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 3.00 in (7.62 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 3.00 in (7.62 cm)
Package 1 Weight: 10.41 oz (295.0 g)
Unit Type of Package 2: PAL
Number of Units in Package 2: 1800
Package 2 Height: 40.00 in (101.6 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 1267.00 lb(US) (574.701 kg)
Unit Type of Package 3: BB1
Number of Units in Package 3: 5
Package 3 Height: 3.20 in (8.128 cm)
Package 3 Width: 2.60 in (6.604 cm)
Package 3 Length: 10.10 in (25.654 cm)
Package 3 Weight: 3.46 lb(US) (1.569 kg)
Warranty: Lifetime
