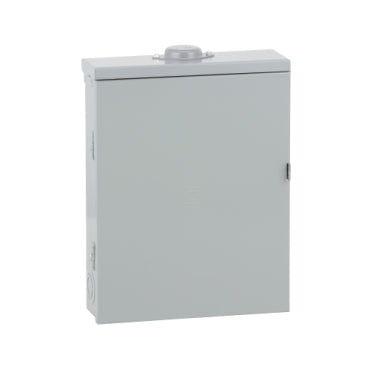

HOM OUTD 100A MB 12/24CIR
The Homeline load center offer features Homeline circuit breakers, ground fault circuit breakers and arc fault interrupters. Homeline load centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. Homeline load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This Homeline load center has a two pole plug on neutral main supply circuit breaker that is rated at 100A 120/240 VAC single phase. Homeline load center provides a 22 kA breaking capacity. This system provides 12 spaces in a NEMA 3R rain proof enclosure. The electrical connections are box lugs. The box lugs will accept a wire range of 6 AWG to 1 AWG copper or 6 AWG to 2/0 AWG aluminum wire. This Homeline load center has a height of 18.92 inches, a width of 14.75 inches, and depth of 4.52 inches. Homeline load centers are UL Listed.Specifications
- Product Type
- Load Center
- Marketing Trade Name
- Homeline
- Load Center Type
- Main breaker
- Rated Current
- 100 A
- Number of Spaces
- 12
- Maximum Number of Single Pole Circuits
- 24
- Enclosure Rating
- NEMA 3R outdoor
- Cover Type
- Surface cover
- Electrical Connection
- Lugs
- Provided Equipment
- Circuit-breaker 1) 2P 100 A 120/240 V AC main supply ready assembled
- Max Short Circuit Current Rating
- 22 kA
- Maximum Number of Tandem Breakers
- 12
- Number of Phases
- 1 phase
- Voltage Rating
- 120/240 V AC
- Wire Size
- AWG 6...AWG 2/0 aluminium;AWG 6...AWG 1 copper
- Ground Bar
- Grounding bar (ordered separately)
- Wiring Configuration
- 3-wire
- Busbar Material
- Tin plated aluminium busbar
- Enclosure Material
- Welded galvannealed steel
- Surface Finish
- Baked enamel Gray
- Box Number
- 3R
- Height
- 18.94 in (481 mm)
- Depth
- 4.53 in (115 mm)
- Width
- 14.76 in (375 mm)
- Ambient Air Temperature for Operation
- 23 °F (-5 °C);104 °F (40 °C)
- Product Certifications
- UL listed file E-6294
- Category
- 00145-HOM LC&CVR;12-42CKT NEMA3R
- Discount Schedule
- DE3C
- GTIN
- 785901861195
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.00 in (12.7 cm)
- Package 1 Width
- 15.50 in (39.37 cm)
- Package 1 Length
- 20.80 in (52.832 cm)
- Package 1 Weight
- 21.68 lb(US) (9.834 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 45
- Package 2 Height
- 50.00 in (127.0 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 1016.00 lb(US) (460.849 kg)
