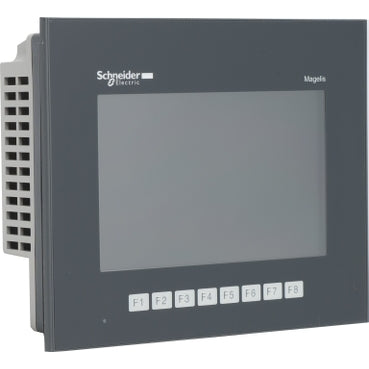

HMIGTO3510 | Advanced touchscreen panel 800 x 480 pixels WVGA- 7.0 IN TFT - 96 MB | Square D

Brand: Square DSKU: HMIGTO3510

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to HMIGTO3510

Jump to: Overview & Specifications Reviews

Overview Details for HMIGTO3510

Advanced touchscreen panel 800 x 480 pixels WVGA- 7.0 IN TFT - 96 MB

This Magelis GTO IP65 touchscreen operator interface (HMI) is supplied with 24V DC, has a 7" color TFT LCD display, 800 x 480 pixels (WVGA), 8 function keys and 96MB EPROM. This touchscreen operator interface (HMI) is ideal for optimized information and communication. Ideal for optimized information and communication with automation systems in industry and infrastructure such as compact machines, handling systems, food & beverage machines and pharmaceutical industry. The screen displays text messages, graphic objects and mimic diagrams, control and configuration of data. RS485 host port, ideal to supervise and control simple systems and machines. It is easily programmable with Vijeo Designer, with almost not coding needed.

Specifications

Range of Product: Harmony GTO
Product or Component Type: Advanced touchscreen panel
display colour: 65536 colours
Display size: 7 inch
supply: External source
Control Button Type: 8 operation defined using Vijeo Designer push-button key F1...F8
Operating System: Harmony
battery type: Lithium internal RAM 100 days 5 day(s) 10 year(s)
terminal type: Touchscreen display
Display Type: Backlit colour TFT LCD
Display Resolution: 800 x 480 pixels WVGA
touch sensitive zone: 1024 x 1024
touch panel: Resistive film;1000000 cycles
backlight lifespan: 50000 hours white 77 °F (25 °C)
brightness: 16 levels by touch panel;16 levels by software
character font: Taiwanese (traditional Chinese);ASCII;Chinese (simplified Chinese);Japanese (ANK;Kanji);Korean
[Us] rated supply voltage: 24 V DC
supply voltage limits: 19.2…28.8 V
inrush current: 30 A
maximum power consumption in W: 8 W when power is not supplied to external devices;5 W when backlight is OFF;5.5 W when backlight is dimmed;12 W
local signalling: Status LED green;steady offline;Status LED green;steady operating;Status LED orange;flashing software starting up;Status LED red;steady power supply (ON);Status LED clear;faded power supply (OFF);COM2 LED yellow;steady data is being transmitted;COM2 LED yellow;faded no data transmission;SD card LED green;steady card is inserted;SD card LED green;faded card is not inserted or is not being accessed
software designation: Vijeo Designer configuration software >= V6.1
memory description: Flash EPROM;96 MB
data backed up: 128 kB internal RAM SRAM)
data storage equipment: SD card;<= 32 GB;SDHC card;<= 32 GB
downloadable protocols: Schneider Electric Modicon Modbus;Schneider Electric Modicon Uni-TE;Schneider Electric Modicon Modbus Plus;Schneider Electric Modicon FIPWAY;Mitsubishi Melsec third party protocols;Omron Sysmac third party protocols;Rockwell Automation Allen-Bradley third party protocols;Siemens Simatic third party protocols;Schneider Electric Modicon Modbus TCP
integrated connection type: COM1 serial link SUB-D 9 RS232C 2400...115200 bps;COM2 serial link RJ45 RS485 2400...115200 bps;COM2 serial link RJ45 RS485 187.5 kbps Siemens MPI;Ethernet RJ45 10BASE-T/100BASE-TX;Ethernet RJ45 IEEE 802.3;USB 2.0 type A;USB 2.0 type mini B
product mounting: Flush mounting
fixing mode: by 4 screw clamps
front material: PPT
Enclosure Material: PPT
type of cooling: Natural convection
Width: 8.58 in (218 mm)
Height: 6.81 in (173 mm)
Depth: 2.36 in (60 mm)
Net Weight: 2.65 lb(US) (1.2 kg)
Standards: UL 508;IEC 61000-6-2;EN 61131-2
Product Certifications: CE;C-tick;KCC;cULus
Ambient air temperature for operation: 32…122 °F (0…50 °C)
ambient air temperature for storage: -4…140 °F (-20…60 °C)
relative humidity: 10…90 % without condensation
operating altitude: < 6561.68 ft (2000 m)
IP degree of protection: IP20 IEC 60529 rear panel);IP65 IEC 60529 front panel)
NEMA degree of protection: NEMA 4X front panel (indoor use)
shock resistance: 147 m/s² 3 chocks in each direction X;Y and Z EN/IEC 61131-2
vibration resistance: 3.5 mm 5…9 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2;1 gn 9…150 Hz) - X;Y;Z directions for 10 cycles (approx. 100 min) - EN/IEC 61131-2
resistance to electrostatic discharge: 6 kV contact discharge IEC 61000-4-2 level 3
Category: 22569-MAGELIS XBT-GT (AND XBT-G)
Discount Schedule: MC2
GTIN: 3595864150260
Returnability: Yes
Country of origin: ID
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 5.71 in (14.5 cm)
Package 1 Width: 10.55 in (26.8 cm)
Package 1 Length: 11.97 in (30.4 cm)
Package 1 Weight: 3.44 lb(US) (1.56 kg)
Unit Type of Package 2: P12
Number of Units in Package 2: 48
Package 2 Height: 41.34 in (105 cm)
Package 2 Width: 31.50 in (80 cm)
Package 2 Length: 47.24 in (120 cm)
Package 2 Weight: 169.32 lb(US) (76.8 kg)
Package 3 Height: 41.34 in (105.0 cm)
Warranty: 18 months
