HL4IMA24C1 | Surge Protect, IMA, HL, 240kA, 480Y/277VAC, 3P4W, T1 | Square D by Schneider Electric

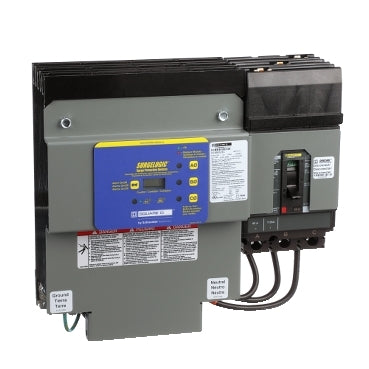

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HL4IMA24C1
Documents and manuals
Square D HL4IMA24C1 Documents
Overview
Details for HL4IMA24C1
Surge Protect, IMA, HL, 240kA, 480Y/277VAC, 3P4W, T1
Specifications
- Product
- Surge protection device
- Range
- Surgelogic
- Device Short Name
- IMA
- Type
- HL
- Surge Current
- 240 kA
- Voltage Rating
- 480Y/277 V AC
- Number of Phases
- 3 phase
- Wiring Configuration
- 4-wire
- Connection
- I-Line line;Lugs ground AWG 6 copper 35.40 lbf.in (4 N.m);Lugs neutral AWG 6 copper 35.40 lbf.in (4 N.m)
- MCOV
- 320 V
- Max Number of Poles
- 3
- Rated Current
- 60 A
- Breaking Capacity
- 50 kA
- Trip Unit Technology
- Thermal-magnetic
- SCCR
- 200 kA
- Local Signalling
- Status LED green per phase normal operation;Status LED red per phase fault
- Provided Equipment
- Alarm enable/disable switch;Surge counter;Circuit-breaker
- Mounting Support
- Panel mounting
- Height
- 12.16 in (308.9 mm)
- Width
- 13.46 in (341.9 mm)
- Depth
- 5.59 in (142.1 mm)
- Cable length
- 19.02 in (483 mm)
- Enclosure Rating
- NEMA 1
- Standards
- UL 1449:ed. 3;CSA C22.2 No 8:1986;UL 96A:ed. 12;UL 489:ed. 11;CSA C22.2 No 5-09
- Category
- 08460-SURGE PROTECTION I-LINE
- Discount Schedule
- DE1B
- GTIN
- 785901072157
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.00 in (22.86 cm)
- Package 1 Width
- 16.00 in (40.64 cm)
- Package 1 Length
- 17.50 in (44.45 cm)
- Package 1 Weight
- 0.35 oz (10 g)
