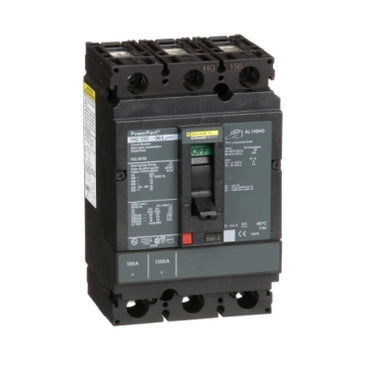

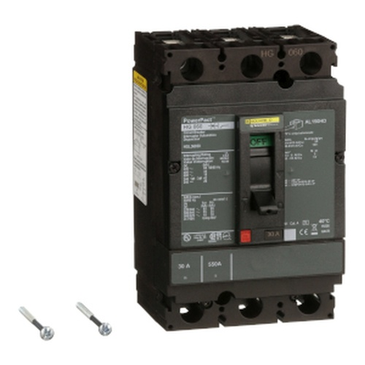

HGL36100 | PowerPact H-Frame Molded Case Circuit Breakers Circuit breaker, PowerPact H, thermal magnetic, 100A, 3 pole, 600V, 18kA | Square D by Schneider Electric

PowerPact H-Frame Molded Case Circuit Breakers Circuit breaker, PowerPact H, thermal magnetic, 100A, 3 pole, 600V, 18kA

PowerPact H-Frame Molded Case Circuit Breakers PowerPact H

• rated current : 100 A
• Network type : AC
• Number of Poles : 3P
• Trip unit technology : Thermal-magnetic
• breaking capacity code : G
• magnetic hold current : 350A
• Rated operational voltage : 600 V AC

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT H, 100A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
