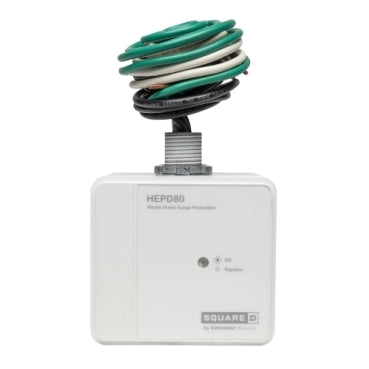

HEPD80 | SPD, HEPD type 1, 120/240 V, 1 PH, 3 wire, 80 kA | Square D by Schneider Electric

SPD, HEPD type 1, 120/240 V, 1 PH, 3 wire, 80 kA

SPD, HEPD type 1, 120/240 V, 1 PH, 3 wire, 80 kA

• Accessory Category: Mounting accessory
• Surge Current: 80 kA per phase
• Voltage Rating: 120/240 V AC
• Number of Phases: 1 phase
• Wiring Configuration: 3-wire (isolated ground)
• Connection: Wire AWG 14
• MCOV: 150 V
• Nominal Discharge Current: 10 kA
• Rated Current: 10 kA
• SCCR: 25 kA
• Local Signaling: 1 LED green normal operation, 1 LED green off
• Mounting Location: Side
• Mounting Support: Bracket
• product destination: Load center
• input voltage: 600 V L-N, 600 V L – G, 1000 V L – L, 900 V N - G
• Height: 3.23 in (82.04 mm)
• Width: 3.72 in (94.49 mm)
• Depth: 2.10 in (53.34 mm)
• Cable length: 34 in (863.60 mm)
• Enclosure Rating: NEMA 4X

HEPD whole house devices are designed to deliver AC surge protection for the entire AC power system in a home. HEPDs are compact in size and are designed to protect AC wires in the home from surges that could affect home electronics and appliances not connected to surge strips. For use on 120/240 VAC single phase, 3 wire systems with an isolated ground. This device provides 25 kA of short circuit protection and 80 kA of surge protection per phase and comes in consumer package. The surge protection device is in a NEMA 4X housing. The surge protection device is 3.23 inches tall, 3.72 inches wide and 2.10 inches deep. The surge protection device is UL listed.
