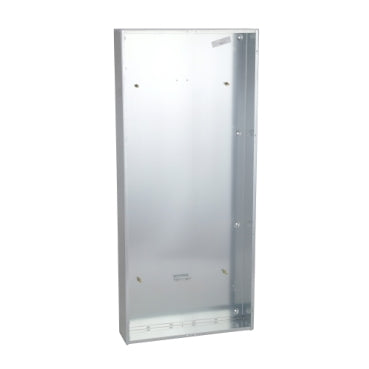

HC3273B | HCM 32 INCH WIDE by 73 INCH HIGH TYPE1 I-LINE PANELBOARD ENCLOSURE | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to HC3273B
Documents and manuals
Square D HC3273B Documents
Overview
Details for HC3273B
HCM 32 INCH WIDE by 73 INCH HIGH TYPE1 I-LINE PANELBOARD ENCLOSURE
Square D™-brand I-Line™ circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® (UL®) Listed under File E33139. Service entrance panelboards meeting the requirements of CSA are available in Canada factory-assembled only. I-Line circuit breaker panelboards are available as 400–1200A main lugs only and 100–1200A main circuit breakers. This HCM I-Line panelboard enclosure has a NEMA 1 degree of protection. This enclosure has current ratings of 225A, 400A & 800A. Dimensions for this enclosure are 1854 mm (H), 813 mm (W),210 mm (D). This product comes with an 18 month warranty.Specifications
- Range of Product
- I-Line
- Product or Component Type
- Enclosure
- Device Application
- Panelboard
- device short name
- HCM
- Line Rated Current
- 225 A;400 A;800 A;600 A
- enclosure nominal width
- 32.01 in (813 mm)
- enclosure nominal height
- 72.99 in (1854 mm)
- enclosure nominal depth
- 8.27 in (210 mm);9.49 in (241 mm)
- Net Weight
- 111.31 lb(US) (50.49 kg)
- NEMA Degree of Protection
- NEMA 1
- Standards
- UL;CSA
- Category
- 07979-I-LINE RTA N1 PB BOX - STD
- Discount Schedule
- PE1A
- GTIN
- 785901790389
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.31 in (21.1 cm)
- Package 1 Width
- 32.01 in (81.3 cm)
- Package 1 Length
- 72.99 in (185.4 cm)
- Package 1 Weight
- 111.32 lb(US) (50.494 kg)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 5
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 42.00 in (106.68 cm)
- Package 2 Length
- 96.00 in (243.84 cm)
- Package 2 Weight
- 557.00 lb(US) (252.651 kg)
- Warranty
- 18 months
