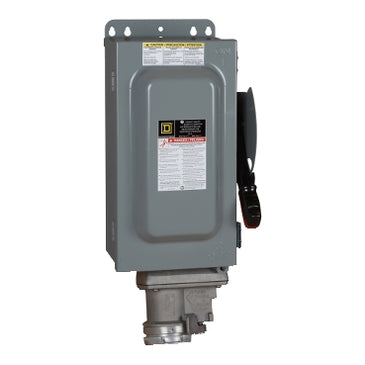

H362AWC | SWITCH FUSIBLE HD 60A /CR-HI RECEPTACLE | Square D by Schneider Electric

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to H362AWC

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D H362AWC Documents

Datasheet

Overview

Details for H362AWC

SWITCH FUSIBLE HD 60A /CR-HI RECEPTACLE

Safety switch, heavy duty, fusible, 60A, 600 VAC/VDC, 3 poles, 50 hp, NEMA 12K, crouse hinds arktite The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. Heavy Duty Safety Switches are utized from commercial and institutional to industrial and manufacturing facilities. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA Type KS-1 or UL98 standards require. The design life of a F-Series switch is a minimum of three times the NEMA requirement. An abundance of copper is used in the heaviest current carrying power paths of all Square D by Schneider Electric Heavy Duty Safety Switches. The more copper for current carrying paths, the lower the temperature rise. Managing temperatures inside the switch is the key to providing greater service life. This Heavy Duty Receptacle Switch is a 60 A, Crouse-Hinds Arktite plug. This receptacle switch has a NEMA 3R/12 degree of protection and is made of galvannealed steel. This product is rated for 30hp & 50hp motors. This has a short circuit rating of 10kA@600VAC. This fusible disconnect switch is surface mounted and is 3 phases. This product complys to UL listed standards. Dimensions for this product are 10.5 in (H),16.5 in (W),7 in (D).

Specifications

Product: Receptacle Switch
For Use With: Plug APJ6485 Crouse-Hinds Arktite
Disconnect Type: Fusible disconnect switch
Phase: 3 phase
Number of Poles: 3
Current rating: 60 A
Voltage Rating: 600 V AC;250 V DC
Enclosure Rating NEMA 3R: NEMA 12K
Maximum Horse Power Rating: 15 hp at 480 V AC 50-60 Hz for 3 phase motors;30 hp at 480 V AC 50-60 Hz for 3 phase motors;15 hp at 600 V AC 50-60 Hz for 3 phase motors;50 hp at 600 V AC 50-60 Hz for 3 phase motors;10 hp at 250 V DC
Short-circuit Current Rating: 10 kA H or K;100 kA R;J or T;200 kA R;J or T
Fuse Type: H or K;R;J or T;R;J or T
Mounting Type: Surface
Electrical Connection: Receptacle
Wire Configuration: 4-wire
Wire Size: AWG 12...AWG 2 aluminium;AWG 14...AWG 2 copper
tightening torque: 45 lbf.in (5.08 N.m) (AWG 6...AWG 4);40 lbf.in (4.52 N.m) (AWG 8);35 lbf.in (3.95 N.m) (AWG 14...AWG 10)
Depth: 7 in (177.80 mm)
Width: 10.5 in (266.70 mm)
Height: 16.5 in (419.10 mm)
Net Weight: 26.46 lb(US) (12 kg)
Certifications: UL Listed
Category: 00118-H&HU SW;W/C-HINDS RECPT-WC
Discount Schedule: DE1
GTIN: 785901195573
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.70 in (19.558 cm)
Package 1 Width: 14.00 in (35.56 cm)
Package 1 Length: 33.20 in (84.328 cm)
Package 1 Weight: 27.28 lb(US) (12.374 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 15
Package 2 Height: 42.00 in (106.68 cm)
Package 2 Width: 40.00 in (101.6 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 437.00 lb(US) (198.22 kg)
Warranty: 18 months
