GV2ME04 | TESYS GV2 CIRCUIT BREAKER, THERMAL-MAGNETIC, 0.4...0.63 A, SCREW CLAMP TERMINALS | Square D by Schneider Electric

Brand: Square DSKU: GV2ME04

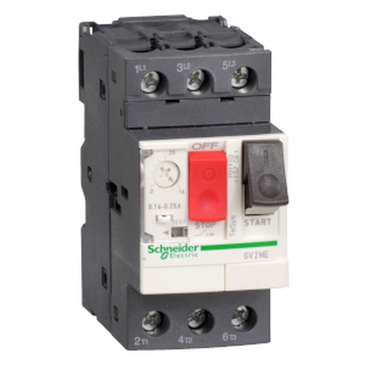

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to GV2ME04

Jump to: Overview & Specifications Reviews

Overview Details for GV2ME04

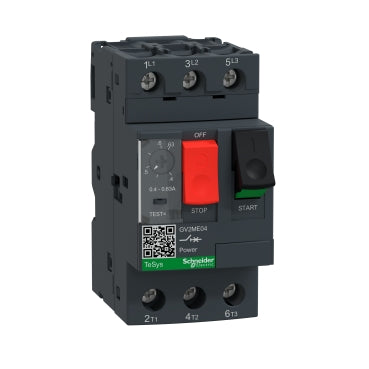

TESYS GV2 CIRCUIT BREAKER, THERMAL-MAGNETIC, 0.4...0.63 A, SCREW CLAMP TERMINALS

TeSys GV motor circuit breaker, 3 poles (3P), 0.63A/690V, for 3-phase motor applications 0.12-0.18kW@400V. It provides a thermal-magnetic protection with a thermal setting range 0.4-0.63A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Specifications

range: TeSys Deca;TeSys Deca
product name: TeSys GV2;TeSys Deca
Product or Component Type: Motor circuit breaker
device short name: GV2ME
Device Application: Motor protection
trip unit technology: Thermal-magnetic
poles description: 3P
network type: AC
utilisation category: AC-3 IEC 60947-4-1;Category A IEC 60947-2
network frequency: 50/60 Hz IEC 60947-4-1
motor power kW: 0.12 kW 400/415 V AC 50/60 Hz;0.18 kW 400/415 V AC 50/60 Hz;0.37 kW 690 V AC 50/60 Hz
breaking capacity: 100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2;100 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2;100 kA Icu 440 V AC 50/60 Hz IEC 60947-2;100 kA Icu 500 V AC 50/60 Hz IEC 60947-2;100 kA Icu 690 V AC 50/60 Hz IEC 60947-2
[Ics] rated service short-circuit breaking capacity: 100 % 690 V AC 50/60 Hz IEC 60947-2;100 % 500 V AC 50/60 Hz IEC 60947-2;100 % 230/240 V AC 50/60 Hz IEC 60947-2;100 % 440 V AC 50/60 Hz IEC 60947-2;100 % 400/415 V AC 50/60 Hz IEC 60947-2
Control Type: Push-button
Line Rated Current: 0.63 A
magnetic tripping current: 8 A
[Ue] rated operational voltage: 690 V AC 50/60 Hz IEC 60947-2
[Ith] conventional free air thermal current: 0.63 A IEC 60947-4-1
[Uimp] rated impulse withstand voltage: 6 kV IEC 60947-2
power dissipation per pole: 2.5 W
mechanical durability: 100000 cycles
electrical durability: 100000 cycles AC-3 415 V
rated duty: Continuous IEC 60947-4-1
phase failure sensitivity: Yes IEC 60947-4-1
suitability for isolation: Yes IEC 60947-1 § 7-1-6
Width: 1.77 in (45 mm)
Height: 3.50 in (89 mm)
Depth: 3.09 in (78.5 mm)
Net Weight: 0.57 lb(US) (0.26 kg)
Standards: EN/IEC 60947-2;EN/IEC 60947-4-1
Product Certifications: CCC;UL;CSA;EAC;ATEX;BV;LROS (Lloyds register of shipping);UKCA;DNV-GL;RINA;UKCA
IP degree of protection: IP20 IEC 60529
climatic withstand: IACS E10
Ambient Air Temperature for Storage: -40…176 °F (-40…80 °C)
fire resistance: 1760 °F (960 °C) IEC 60695-2-11
ambient air temperature for operation: -4…140 °F (-20…60 °C)
operating altitude: 6561.68 ft (2000 m)
Category: 22367-MANUAL STR PROTECTOR - GV2
Discount Schedule: I11
GTIN: 3389110343014
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.77 in (4.500 cm)
Package 1 Width: 3.35 in (8.500 cm)
Package 1 Length: 3.74 in (9.500 cm)
Package 1 Weight: 8.15 oz (231.000 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 24
Package 2 Height: 5.91 in (15.000 cm)
Package 2 Width: 11.81 in (30.000 cm)
Package 2 Length: 15.75 in (40.000 cm)
Package 2 Weight: 12.78 lb(US) (5.795 kg)
Unit Type of Package 3: P06
Number of Units in Package 3: 384
Package 3 Height: 29.53 in (75.000 cm)
Package 3 Width: 31.50 in (80.000 cm)
Package 3 Length: 23.62 in (60.000 cm)
Package 3 Weight: 222.05 lb(US) (100.720 kg)
Warranty: 18 months
