EMKA934553L008044X | Energy meter kits for 208Y/120V or 480Y/277V L-L-L-N, 240V or 480V L-L-L Delta, 3-800A LVCTs Split Core, NEMA Type 4X Enclosure | Square D by Schneider Electric

Brand: Square DSKU: EMKA934553L008044X

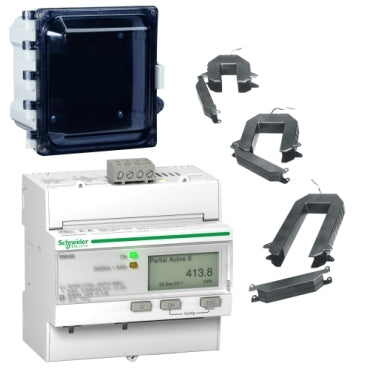

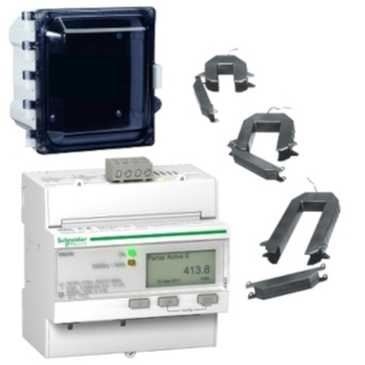

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to EMKA934553L008044X

Jump to: Overview & Specifications Reviews

Overview Details for EMKA934553L008044X

Energy meter kits for 208Y/120V or 480Y/277V L-L-L-N, 240V or 480V L-L-L Delta, 3-800A LVCTs Split Core, NEMA Type 4X Enclosure

Specifications

Product or Component Type: Energy meter kit
poles description: 3P + N;1P + N;3P
type of measurement: Active and reactive energy;Active and reactive power;Current;Voltage
metering type: Active;reactive;apparent energy (signed;four quadrant)
Device Application: Sub billing;Multi-tariff;Partial meter
rated voltage: 100…277 V +/- 20 %;173…480 V +/- 20 %
Network Frequency: 60 Hz;50 Hz
Technology Type: Electronic
Display Type: LCD display
current transformer type: Split core balance
Line Rated Current: 800 A
measurement accuracy: 1 % 10...100 %
enclosure mounting: Wall mounted
communication port protocol: Modbus RTU 9.6;19.2 and 38.4 kbauds even/odd or none
communication port support: Screw terminal block RS485
local signalling: Green indicator light power ON;Yellow flashing LED accuracy checking;alarm overload;Yellow indicator light communications are active on the Modbus port (Modbus)
Mounting Mode: Clip-on
Mounting Support: DIN rail
connections - terminals: Current circuit screw terminals 0.01 in² (6 mm²);Voltage circuit screw terminals 0.00 in² (2.5 mm²);Input/output circuit screw terminals 0.00 in² (1.5 mm²);Communication screw terminals 0.00 in² (2.5 mm²)
tightening torque: Input/output circuit 4.43 lbf.in (0.5 N.m) Philips;Voltage circuit 4.43 lbf.in (0.5 N.m) Philips;Current circuit 7.08 lbf.in (0.8 N.m) pozidriv;Communication 4.43 lbf.in (0.5 N.m) Philips
provided equipment: 1 energy meter;3 x 800 A current transformer;1 enclosure
product certifications: ANSI;UL;CSA
NEMA Degree of Protection: NEMA 4X
ambient air temperature for operation: -13…158 °F (-25…70 °C)
Category: 09775-ENERGY METER KITS
Discount Schedule: PL1
GTIN: 785901990154
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Weight: 17.75 lb(US) (8.051 kg)
