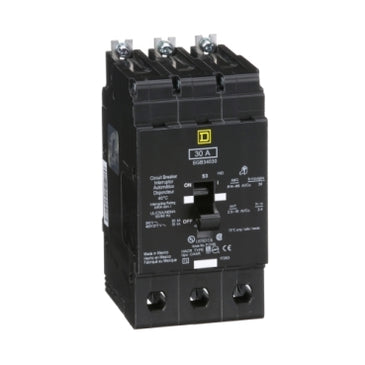

EGB34030 | E Frame, circuit breaker, 30 A, 3 pole, 480Y/277 V, 35/65 kA, bolt on | Square D by Schneider Electric

Brand: Square DSKU: EGB34030
Square D | EGB34030

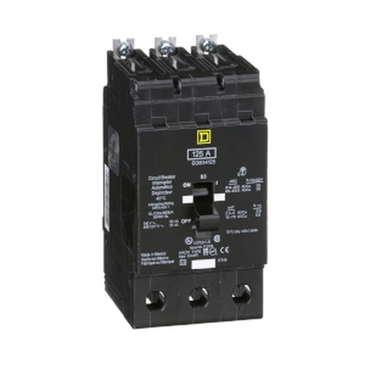

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EGB34030

Overview Details for EGB34030

E Frame, circuit breaker, 30 A, 3 pole, 480Y/277 V, 35/65 kA, bolt on

E Frame Miniature circuit-breaker
  • trip unit rating : 875 A
  • Line Rated Current : 30 A
  • maximum operating voltage : 480Y/277 V AC
  • number of poles : 3 poles
  • Protection type : Short-circuit, Overload
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This device is a 3 pole bolt-on breaker that is rated at 30 A at a system voltage of 480Y/277 VAC and the breaker is UL Listed as well as CSA rated. This E-Frame breaker has thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. This specific breaker is HACR rated and HID rated. The breaker has aluminium lugs which have a terminal lug rating of AWG 12...AWG 6 (aluminium) and AWG 14...AWG 6 (copper). This E-frame breaker breaking capacity has been tested a numerous voltages but at two voltages the capacity is 35 kA at 480Y/277 VAC and 65 kA at 120/240 VAC. This device has a hold current of 270 A which is the maxiumum current the breaker can be held to ensure it will trip and a trip current of 875A which is the current value when the breaker is guaranteed to trip. The circuit breaker has a height of 5.66 in, width of 2.94 in and a depth of 4.05 in. This breaker was calibrated for 40 degrees C. This product is UL Listed as High Intensity Discharge. HACR rated.

Specifications

Range of Product
125 A Frame EDB-EGB-EJB
Product or Component Type
Miniature circuit-breaker
device short name
EGB
module type
E-Frame
trip unit rating
875 A
Line Rated Current
30 A
maximum operating voltage
480Y/277 V AC
AWG gauge
AWG 12...AWG 6 aluminium;AWG 14...AWG 6 copper
breaking capacity
35 kA 277 V AC;65 kA 240 V AC;35 kA 480Y/277 V AC;65 kA 120 V AC;65 kA 120/240 V AC
circuit breaker application
HID rated;HACR rated
electrical connection
Lugs aluminium
Holding Current
270 A
local signalling
Trip indicator
Mounting Mode
Bolt-on
number of poles
3
number of spaces
3
number of spaces required
3
product destination
NF panelboard
Protection Type
Short-circuit;Overload
trip unit technology
Thermal-magnetic
breaking capacity code
G
tightening torque
30.09 lbf.in (3.4 N.m) 0.00…0.02 in² (2.5…16 mm²) (AWG 14...AWG 6)
Height
5.66 in (143.76 mm)
Width
2.94 in (74.68 mm)
Depth
4.05 in (102.87 mm)
Net Weight
4 lb(US) (1.81 kg)
Product Certifications
cULus
Ambient air temperature for operation
104 °F (40 °C)
Category
00936-EGB CIRCUIT BREAKERS
Discount Schedule
DE2
GTIN
785901073017
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
5.00 in (12.7 cm)
Package 1 Width
6.50 in (16.51 cm)
Package 1 Length
10.00 in (25.4 cm)
Package 1 Weight
3.80 lb(US) (1.724 kg)
Unit Type of Package 2
PAL
Number of Units in Package 2
378
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Package 2 Weight
1418.00 lb(US) (643.193 kg)
Warranty
18 months
