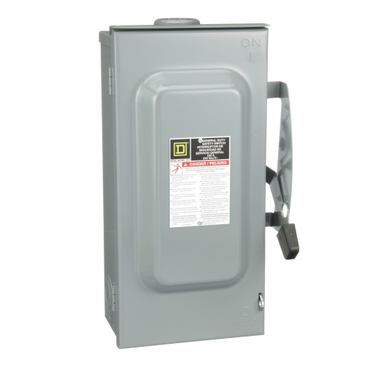

D223NRB | SWITCH FUSIBLE GD 240V 100A 2P NEMA3R | Square D

Brand: Square DSKU: D223NRB

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to D223NRB

Jump to: Overview & Specifications Reviews

Overview Details for D223NRB

SWITCH FUSIBLE GD 240V 100A 2P NEMA3R

Safety switch, general duty, fusible, 100A, 2 poles, 30 hp, 120 VAC, NEMA 3R, bolt-on provision, neutral factory installed General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory installed neutral assembly or field installed service grounding kit. This general duty single throw safety switch is a two pole, 100A, fusible disconnect with a 240VAC voltage rating. This switch has a factory installed neutral and a NEMA 3R enclosure and is surface mounted. This safety switch accepts H, K, or R fuses. This switch comes with lugs suitable for aluminum or copper conductors. This safety switch accepts H, K, or R fuses. These general duty switches are UL listed.

Specifications

Product: Single Throw Safety Switch
Duty Rating: General duty
Device Application: Residential
Disconnect Type: Fusible disconnect switch
Factory Installed Neutral: Neutral (factory installed)
Phase: 3 phase
Number of Poles: 2
Current Rating: 100 A
Voltage Rating: 240 V AC
Enclosure Rating NEMA: NEMA 3R
Motor power hp: 7.5 hp at 240 V AC 60 Hz for 1 phase motors;15 hp at 240 V AC 60 Hz for 3 phase motors;15 hp at 240 V AC 60 Hz for 1 phase motors;30 hp at 240 V AC 60 Hz for 3 phase motors
Short Circuit Current Rating: 100 kA maximum depending on fuse H;K or R
fuse type: H;K or R
Mounting Type: Surface
Electrical Connection: Lugs
wiring configuration: 3-wire
Wire Size: AWG 14...AWG 1 copper;AWG 12...AWG 1 aluminium
tightening torque: 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);40 lbf.in (4.52 N.m) 0.01 in² (8.37 mm²) (AWG 8);35 lbf.in (3.95 N.m) (AWG 14...AWG 10);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) (AWG 3...AWG 1)
Depth: 6.5 in (165.10 mm)
Width: 10.56 in (268.22 mm)
Height: 17.5 in (444.50 mm)
Net Weight: 15.43 lb(US) (7 kg)
Certifications: UL listed file E2875
Category: 00106-D & DU SW;NEMA3R;30-200A
Discount Schedule: DE1A
GTIN: 785901460701
Returnability: Yes
Country of origin: US
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 7.30 in (18.542 cm)
Package 1 Width: 10.80 in (27.432 cm)
Package 1 Length: 20.00 in (50.8 cm)
Package 1 Weight: 15.60 lb(US) (7.076 kg)
Unit Type of Package 2: PAL
Number of Units in Package 2: 40
Package 2 Height: 41.00 in (104.14 cm)
Package 2 Width: 41.00 in (104.14 cm)
Package 2 Length: 48.00 in (121.92 cm)
Package 2 Weight: 650.00 lb(US) (294.835 kg)
Warranty: 18 months
