CD322NRB | 60A 3P Type3R 120/240VAC General Duty Safety Switch with Solid Neutral | Square D by Schneider Electric

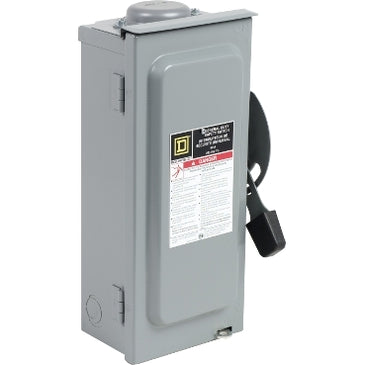

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to CD322NRB
Documents and manuals
Square D CD322NRB Documents
Overview
Details for CD322NRB
60A 3P Type3R 120/240VAC General Duty Safety Switch with Solid Neutral
General duty safety switches are designed for residential and commercial applications where durability and economy are prime considerations. Typical loads include lighting, air conditioning, and appliances. They are suitable for use as service equipment when equipped with a factory-installed neutral assembly or field-installed service grounding kit, as applicable. General duty safety switches are UL® Listed, and meet or exceed the NEMA® Standard KS1. This Single Throw Safety Switch which has a rated current of 30A with a NEMA 3R degree of protection. This fusible disconnect switch comes with a neutral (factory installed). This general duty switch is a 3-pole, 240VAC has a short curcuit rating of 100kA and is surface mounted. This switch has lugs for an electrical connection which will accept AWG 14 AWG 6, copper & AWG 12 AWG 6, aluminium. This switch is certified to UL standards Dinemsions for this product are 9.63 in (H), 7.75 in (W), 3.75 in (D). General Duty safety switchs come with an 18 months warranty.Specifications
- Product or Component Type
- Single Throw Safety Switch
- series name
- General duty
- Device Composition
- Neutral (factory installed)
- disconnector device type
- Fusible disconnect
- short-circuit current
- 100 kA maximum cartridge
- device mounting
- Surface
- number of poles
- 3
- Electrical Connection
- Lugs
- [Ue] rated operational voltage
- 120/240 V AC
- Motor power hp
- 7.5 hp at 240 V AC 50-60 Hz for 1 phase motors;15 hp at 240 V AC 50-60 Hz for 3 phase motors;15 hp at 240 V AC 50-60 Hz for 1 phase motors;30 hp at 240 V AC 50-60 Hz for 3 phase motors
- AWG gauge
- AWG 14...AWG 3 copper or aluminium
- tightening torque
- 35 lbf.in (3.95 N.m) 0.00…0.01 in² (2.08…5.26 mm²) (AWG 14...AWG 10);45 lbf.in (5.08 N.m) 0.01 in² (8.37 mm²) (AWG 8);45 lbf.in (5.08 N.m) 0.02…0.03 in² (12.3…21.12 mm²) (AWG 6...AWG 4);50 lbf.in (5.65 N.m) 0.04 in² (26.67 mm²) (AWG 3)
- Height
- 14.88 in (377.95 mm)
- Width
- 7.45 in (189.23 mm)
- Depth
- 4.87 in (123.70 mm)
- Product Certifications
- CSA
- NEMA degree of protection
- NEMA 3R galvannealed steel
- Category
- 00154-CD&CDU CANADA SW NON-NEGO
- Discount Schedule
- DE1A
- GTIN
- 785901404989
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.10 in (12.954 cm)
- Package 1 Width
- 7.70 in (19.558 cm)
- Package 1 Length
- 16.10 in (40.894 cm)
- Package 1 Weight
- 8.58 lb(US) (3.892 kg)
- Warranty
- 18 months
