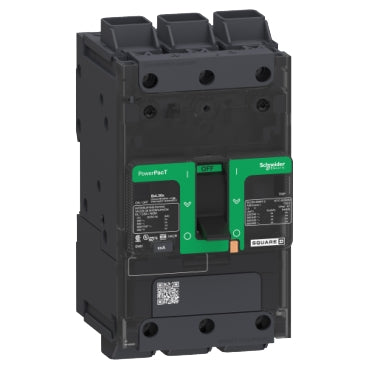

BDL36060 | PowerPact B-Frame Molded Case Circuit Breakers, 60A, 3P, 600Y/347V AC, 14kA at 600Y/347 UL EverLink | Square D by Schneider Electric

PowerPact B-Frame Molded Case Circuit Breakers, 60A, 3P, 600Y/347V AC, 14kA at 600Y/347 UL EverLink

PowerPact B-Frame Molded Case Circuit Breakers

• rated current : 60 A
• Network type : AC
• Number of Poles : 3P
• Trip unit technology : Thermal-magnetic
• breaking capacity code : D
• breaking capacity : 14 kA 600Y/347 V AC 50/60 Hz UL 489
• Rated operational voltage : 525 V AC 50/60 Hz UL 489

PowerPacT B-Frame brings thermal-mechanical circuit protection in a compact size and offers a wide range of accessories, auxiliaries, and connection options. This PowerPacT B-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14kA at 600Y/347VAC. All PowerPacT B-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT B-Frame circuit breakers come in 1 to 4-pole unit mount construction and in 1 to 3-pole I-Line construction. This circuit breaker's unit mount construction features traditional back pan mounting with screws or integrated DIN rail mounting for installation flexibility. This unit features EverLink lugs, a patented design to reduce loosening of cables over time, on both termination ends. This PowerPacT B, 60A, 3 pole, circuit breaker has a breaking capacity of 14kA at 600Y/347VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT B circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
