ATV320D11M3C | Variable speed drive, ATV320, 11 kW, 200…240 V, 3 phases, compact | Square D

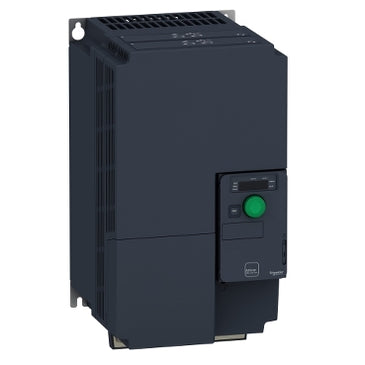

Square D | ATV320D11M3C
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to ATV320D11M3C

Documents and manuals

Square D ATV320D11M3C Documents

Overview

Details for ATV320D11M3C

Variable speed drive, ATV320, 11 kW, 200…240 V, 3 phases, compact

ATV320, Variable speed drive, 11 kW
  • Network number of phases : 3 phases
  • Rated supply voltage : 200...240 V - 15...10 %
  • Motor power kW : 11.0 kW for heavy duty
  • Motor power hp : 15.0 hp for heavy duty
  • Supply frequency : 50...60 Hz - 5...5 %
Altivar Machine ATV320 range is an offer of variable speed drives designed for Original Equipment Manufacturers (OEMs). Its compact form factor allows vertical stacking of drives inside machine frames. It works at a rated power up to 11kW / 15hp and a rated voltage from 200V to 240V AC. Its robust design with IEC 60721-3-3 class 3C3 coated printed circuit boards allows to extend machine availability in harsh environmental conditions, for example at ambient temperatures of up to 60°C without the need of additional cooling. It incorporates functions suitable for the most common applications, including torque and speed accuracy at very low speed, high dynamic performance with flux vector control without sensor and extended frequency range for high-speed motors. It also incorporates parallel connection of motors and special drives using the voltage/frequency ratio and static speed accuracy and energy saving for open-loop synchronous motors. It weighs 6.8kg and its dimensions are 180mm wide, 330mm high, 198mm deep. The drive software includes 5 safety functions that help machines meet safety requirements, whether or not they are used in conjunction with a Preventa safety module. These safety functions are configured using SoMove software. Altivar Machine ATV320 was designed for Original Equipment Manufacturers (OEMs) that meets simple and advanced application requirements covered for packaging, material handling, textile, material working, mechanical actuators and hoisting. It conforms to IEC, UL, TUV, KC and other international standards. Mounting accessories and external options (braking resistors, line chokes, motor chokes, additional EMC filters) are available with Altivar Machine ATV320 drives. The type of external accessories and options depends on the drive rating. The product is delivered in one package. It is designed to be mounted in vertical position (+/- 10 °) on a panel, thanks to 4 fixing holes. It is fully integrated inside Schneider Electric’s EcoStruxure Machine through DTM. It is possible to configure, control, and diagnose ATV320 drives directly in SoMachine and SoMove software by means of the same software brick (DTM). It is eco-friendly and complies with directives such as RoHS, WEEE, etc.relating to environmental protection.

Specifications

Range of Product
Altivar Machine ATV320
Product or Component Type
Variable speed drive
Product Specific Application
Complex machines
variant
Standard version
format of the drive
Compact
Mounting Mode
Wall mount
Communication Port Protocol
Modbus serial;CANopen
option card
communication module;CANopen;communication module;EtherCAT;communication module;Profibus DP V1;communication module;PROFINET;communication module;Ethernet Powerlink;communication module;EtherNet/IP;communication module;DeviceNet
[Us] rated supply voltage
200...240 V - 15...10 %
nominal output current
54.0 A
motor power kW
11 kW heavy duty
EMC filter
Without EMC filter
IP degree of protection
IP20
discrete input number
7
discrete input type
STO safe torque off;24 V DC1.5 kOhm;DI1...DI6 logic inputs;24 V DC 30 V);DI5 programmable as pulse input 0…30 kHz;24 V DC 30 V)
discrete input logic
Positive logic (source);Negative logic (sink)
discrete output number
3
discrete output type
Open collector DQ+ 0…1 kHz 30 V DC 100 mA;Open collector DQ- 0…1 kHz 30 V DC 100 mA
analogue input number
3
analogue input type
AI1 voltage 0...10 V DC 30 kOhm 10 bits;AI2 bipolar differential voltage +/- 10 V DC 30 kOhm 10 bits;AI3 current 0...20 mA (or 4-20 mA;x-20 mA;20-x mA or other patterns by configuration) 250 Ohm 10 bits
analogue output number
1
analogue output type
Software-configurable current AQ1 0...20 mA 800 Ohm 10 bits;Software-configurable voltage AQ1 0...10 V DC 470 Ohm 10 bits
relay output type
Configurable relay logic R1A 1 NO 100000 cycles;Configurable relay logic R1B 1 NC 100000 cycles;Configurable relay logic R1C;Configurable relay logic R2A 1 NO 100000 cycles;Configurable relay logic R2C
maximum switching current
Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 250 V AC;Relay output R1A;R1B;R1C resistive;cos phi = 1 3 A 30 V DC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 250 V AC;Relay output R1A;R1B;R1C;R2A;R2C inductive;cos phi = 0.4 7 ms 2 A 30 V DC;Relay output R2A;R2C resistive;cos phi = 1 5 A 250 V AC;Relay output R2A;R2C resistive;cos phi = 1 5 A 30 V DC
minimum switching current
Relay output R1A;R1B;R1C;R2A;R2C 5 mA 24 V DC
method of access
Slave CANopen
4 quadrant operation possible
True
asynchronous motor control profile
Voltage/frequency ratio;5 points;Flux vector control without sensor;standard;Voltage/frequency ratio - Energy Saving;quadratic U/f;Flux vector control without sensor - Energy Saving;Voltage/frequency ratio;2 points
synchronous motor control profile
Vector control without sensor
maximum output frequency
0.599 kHz
transient overtorque
170…200 % of nominal motor torque
acceleration and deceleration ramps
Linear;U;S;CUS;Ramp switching;Acceleration/deceleration ramp adaptation;Acceleration/deceleration automatic stop with DC injection
motor slip compensation
Automatic whatever the load;Adjustable 0...300 %;Not available in voltage/frequency ratio (2 or 5 points)
switching frequency
2...16 kHz adjustable;4...16 kHz with derating factor
nominal switching frequency
4 kHz
braking to standstill
By DC injection
brake chopper integrated
True
line current
60.9 A 200 V heavy duty);51.4 A 240 V heavy duty)
Maximum Input Current per Phase
60.9 A
maximum output voltage
240 V
apparent power
21.4 kVA 240 V heavy duty)
Network Frequency
50-60 Hz
relative symmetric network frequency tolerance
5 %
prospective line Isc
22 kA
base load current at high overload
1.5 A
power dissipation in W
Fan 468.0 W 200 V 4 kHz
with safety function Safely Limited Speed (SLS)
True
with safety function Safe brake management (SBC/SBT)
False
with safety function Safe Operating Stop (SOS)
False
with safety function Safe Position (SP)
False
with safety function Safe programmable logic
False
with safety function Safe Speed Monitor (SSM)
False
with safety function Safe Stop 1 (SS1)
True
with sft fct Safe Stop 2 (SS2)
False
with safety function Safe torque off (STO)
True
with safety function Safely Limited Position (SLP)
False
with safety function Safe Direction (SDI)
False
protection type
Input phase breaks drive;Overcurrent between output phases and earth drive;Overheating protection drive;Short-circuit between motor phases drive;Thermal protection drive
Width
7.09 in (180 mm)
Height
12.99 in (330 mm)
Depth
7.80 in (198.0 mm)
Net Weight
14.99 lb(US) (6.8 kg)
operating position
Vertical +/- 10 degree
Product Certifications
CE;ATEX;NOM;GOST;EAC;RCM;KC
Marking
CE;ATEX;UL;CSA;EAC;RCM
Standards
EN/IEC 61800-5-1
electromagnetic compatibility
Electrostatic discharge immunity test level 3 IEC 61000-4-2;Radiated radio-frequency electromagnetic field immunity test level 3 IEC 61000-4-3;Electrical fast transient/burst immunity test level 4 IEC 61000-4-4;1.2/50 µs - 8/20 µs surge immunity test level 3 IEC 61000-4-5;Conducted radio-frequency immunity test level 3 IEC 61000-4-6;Voltage dips and interruptions immunity test IEC 61000-4-11
environmental class (during operation)
Class 3C3 according to IEC 60721-3-3;Class 3S2 according to IEC 60721-3-3
maximum acceleration under shock impact (during operation)
150 m/s² at 11 ms
maximum acceleration under vibrational stress (during operation)
10 m/s² at 13...200 Hz
maximum deflection under vibratory load (during operation)
1.5 mm at 2...13 Hz
permitted relative humidity (during operation)
Class 3K5 according to EN 60721-3
volume of cooling air
41211.58 Gal/hr(US) (156.0 m3/h)
overvoltage category
III
regulation loop
Adjustable PID regulator
speed accuracy
+/- 10 % of nominal slip 0.2 Tn to Tn
pollution degree
2
ambient air transport temperature
-13…158 °F (-25…70 °C)
ambient air temperature for operation
14…122 °F (-10…50 °C) without derating;122…140 °F (50…60 °C) with derating factor
Ambient Air Temperature for Storage
-13…158 °F (-25…70 °C)
Category
22153-ATV320/ATV312/ATV32 (10 THRU 30HP)
Discount Schedule
CP4B
GTIN
3606480966699
Returnability
Yes
Country of origin
ID
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
8.86 in (22.5 cm)
Package 1 Width
9.84 in (25.0 cm)
Package 1 Length
16.54 in (42.0 cm)
Package 1 Weight
17.39 lb(US) (7.887 kg)
Unit Type of Package 2
S06
Number of Units in Package 2
6
Package 2 Height
28.94 in (73.5 cm)
Package 2 Width
31.50 in (80.0 cm)
Package 2 Length
23.62 in (60.0 cm)
Package 2 Weight
134.44 lb(US) (60.982 kg)
