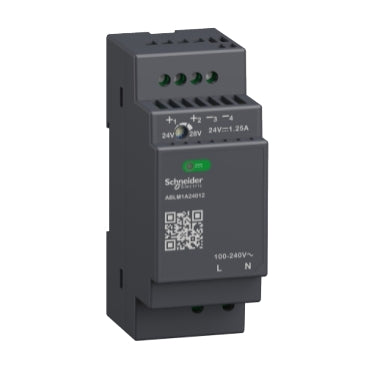

ABLM1A24012 | POWER SUPPLY 24V | Square D by Schneider Electric

Brand: Square DSKU: ABLM1A24012

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to ABLM1A24012

Jump to: Overview & Specifications Reviews

Overview Details for ABLM1A24012

POWER SUPPLY 24V

Regulated Power Supply, 100-240V AC, 24V 1.2 A, single phase, Modular This ABLM regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 240V AC, a rated output current of 1,25A at 24V DC and a rated power output of 30W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It installs on omega rail or fixing by screw. Its width is 36mm, its height is 91mm, its depth is 55,6mm. It ensures a protection against overloads and short-circuits with automatic restart after the source of overload/short-circuit has been corrected. It weighs 0.170kg. It is a power supply for industrial use, rail mounting. It conforms to EN62368-1, ENIEC61010-1/2-201, ENIEC61204-3, EN61000-6-1/2/3/4, EN61000-3-2-3, UL62368-1, UL61010-2-201/-1-201, CSAC22.2No62368-1/No61010-2-201/No61010-1 standards, and certified by CE, CUL listed/recognized, RCM, CBscheme. The Acti9 iC60 range of Miniature Circuit Breakers is recommanded for its protection. The type of protection is 4A, B or C-curve. It has in the front face a LED indicating presence of DC output voltage, and a QR code for access to the latest technical documentation. Thanks to their modular housing, they can be installed either in enclosures or industrial panels by clipping on omega (DIN) rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Specifications

Range of Product: Modicon Power Supply
Product or Component Type: Power supply
power supply type: Regulated switch mode
variant option: Modular
Enclosure Material: Plastic
Nominal input voltage: 100...240 V AC single phase;100...240 V AC 2 phases
Kw Rating: 30 W
output voltage: 24 V DC
power supply output current: 1.25 A
Input voltage limits: 90...264 V AC
Nominal network frequency: 50…60 Hz
Network system compatibility: TN;TT;IT
maximum leakage current: 0.25 mA 240 V AC
input protection type: Integrated fuse (not interchangeable) 3.15 A;External protection (recommended) 20 A Curve B;External protection (recommended) 20 A Curve C;External protection (recommended) 4 A Curve B;External protection (recommended) 4 A Curve C
inrush current: 25 A 115 V;50 A 230 V
power factor: 0.48 at 115 V AC;0.38 at 230 V AC
efficiency: 87 % 115 V AC;87 % 230 V AC
Output voltage adjustment: 24...28 V
power dissipation in W: 5 W
current consumption: < 0.8 A 115 V AC;< 0.6 A 230 V AC
Turn-on time: < 2 s
holding time: > 20 ms 115 V AC;> 60 ms 230 V AC
Startup with capacitive loads: 3000 µF
residual ripple: < 100 mV
Expected capacitor life time: 10 year(s)
meantime between failure [MTBF]: 2500000 h at 77 °F (25 °C);full load;1000000 h at 131 °F (55 °C);80 % load
output protection type: Against overload and short-circuits automatic reset;Against over temperature manual reset;Against overvoltage manual reset
connections - terminals: Screw connection 0.5...1.5 mm²;AWG 20...AWG 16) without wire end ferrule input/output;Screw connection 0.5...1 mm²;AWG 20...AWG 18) with wire end ferrule input/output
line and load regulation: < 0.5 % network in line;< 1 % network 0 to 100 % load
status LED: 1 LED (Green) output voltage
Depth: 2.19 in (55.6 mm)
Height: 3.58 in (91 mm)
Width: 1.42 in (36 mm)
Net Weight: 0.37 lb(US) (0.170 kg)
output coupling: Serial;Parallel
mounting support: Top hat type TH35-15 rail IEC 60715;Top hat type TH35-7.5 rail IEC 60715;Double-profile DIN rail;panel mounting
supply: SELV EN/IEC 60950-1;SELV EN/IEC 60204-1;SELV IEC 60364-4-41
dielectric strength: 3000 V AC input/output
Standards: EN 62368-1;EN/IEC 61010-1;EN 61010-2-201;EN/IEC 61204-3;EN 61000-6-1;EN 61000-6-2;EN 61000-6-3;EN 61000-6-4;EN 61000-3-2;EN 61000-3-3;UL 62368-1;UL 61010-1;UL 61010-2-201;CSA C22.2 No 62368-1;CSA C22.2 No 61010-1;CSA C22.2 No 61010-2-201;EN/IEC 62368-1
product certifications: CE;CUL Listed;CUL Recognized;RCM;CB Scheme;EAC;KC;NEC class 2
operating altitude: < 6561.68 ft (2000 m) overvoltage category III;2000 m...5000 m overvoltage category II
shock resistance: 100 m/s² 11 ms
IP degree of protection: IP20
Ambient air temperature for operation: -13…131 °F (-25…55 °C) without current derating mounting position A < 6561.68 ft (2000 m);131…158 °F (55…70 °C) with current derating of 2.67 % per °C mounting position A < 6561.68 ft (2000 m)
electrical shock protection class: Class II without PE connection
pollution degree: 2
vibration resistance: 3 mm 2…9 Hz)IEC 60721-3-3;10 m/s² 9…200 Hz)IEC 60721-3-3
Electromagnetic immunity: Immunity to electrostatic discharge 6 kV contact discharge) EN/IEC 61000-4-2;Immunity to electrostatic discharge 9 kV air discharge) EN/IEC 61000-4-2;Electromagnetic field immunity test 10 V/m 80 MHz...2 GHz) EN/IEC 61000-4-3;Electromagnetic field immunity test 5 V/m 2...2.7 GHz) EN/IEC 61000-4-3;Electromagnetic field immunity test 3 V/m 2.7...6 GHz) EN/IEC 61000-4-3;Immunity to fast transients 4 kV on input-output) EN/IEC 61000-4-4;Surge immunity test 3 kV between power supply and earth) EN/IEC 61000-4-5;Surge immunity test 1.5 kV between phases) EN/IEC 61000-4-5;Immunity to conducted disturbances 10 Vrms 0.15...80 MHz) EN/IEC 61000-4-6;Immunity to magnetic fields 30 A/m 50...60 Hz) EN/IEC 61000-4-8;Immunity to voltage dips 100 % 1 cycle) EN/IEC 61000-4-11;Immunity to voltage dips 60 % 10 cycles) EN/IEC 61000-4-11;Immunity to voltage dips 30 % 25 cycles) EN/IEC 61000-4-11;Disturbing field emission EN 55016-2-3;Limits for harmonic current emissions EN 61000-3-2;Conducted disturbance emission EN 55016-1-2;Conducted disturbance emission EN 55016-2-1
electromagnetic emission: Conducted emissions EN 61000-6-3;Radiated emissions EN 61000-6-4
Category: 22525-ABL8 AND ABL7 POWER SUPPLIE
Discount Schedule: CP12
GTIN: 3606481500151
Returnability: Yes
Country of origin: TH
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.97 in (5 cm)
Package 1 Width: 2.36 in (6 cm)
Package 1 Length: 4.33 in (11 cm)
Package 1 Weight: 6.07 oz (172 g)
Unit Type of Package 2: S02
Number of Units in Package 2: 29
Package 2 Height: 5.91 in (15 cm)
Package 2 Width: 11.81 in (30 cm)
Package 2 Length: 15.75 in (40 cm)
Package 2 Weight: 11.76 lb(US) (5.332 kg)
