9422TDF63 | Operating mechanism, flange mounted, variable depth, 60A, 600 V, H, K, J, R fuse holder, switch mechanism | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9422TDF63
Documents and manuals
Square D 9422TDF63 Documents
Overview
Details for 9422TDF63

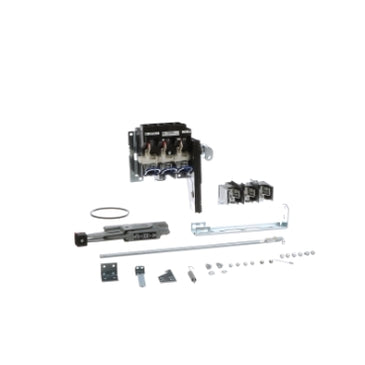

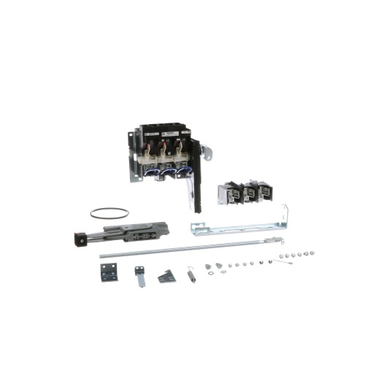

Operating mechanism, flange mounted, variable depth, 60A, 600 V, H, K, J, R fuse holder, switch mechanism
9422TDF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This 60 A disconnect switch will accept Class H, J, K or R fuses only. This 60 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 250 VDC max when using two poles. 9422A operating handles must be purchased separately. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Switch is UL component recognized and CSA certified. Disconnect switch is UL Component Recognized and CSA certifiedSpecifications
- Range
- 9422T
- Product
- Disconnect Switch
- Disconnect Type
- Fusible disconnect switch
- Mounting Type
- Flange rod variable depth
- Current Rating
- 60 A
- Horsepower Rating
- 15 hp 200 V AC;15 hp 230 V AC;30 hp 460 V AC;50 hp 575 V AC;10 hp 250 V DC
- Fuse Rating
- 60 A 600 V
- Handle Type
- Ordered separately
- Fuse Type
- J;H;K;R
- Certifications
- UL Recognized;CSA
- Category
- 21732-9422
- Discount Schedule
- CP1
- GTIN
- 785901879879
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.10 in (18.034 cm)
- Package 1 Width
- 11.20 in (28.448 cm)
- Package 1 Length
- 16.00 in (40.64 cm)
- Package 1 Weight
- 6.21 lb(US) (2.817 kg)
- Warranty
- 18 months
