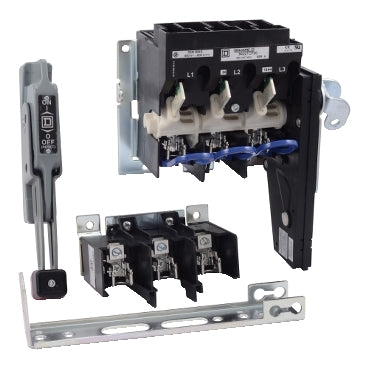

Operating mechanism, fuse switch, 30 A 600 VAC, 9422A1 handle
9422ATCF disconnect switches are designed for control panel installations. This disconnect switch is fully compatible with 9422A handle operators and 9423 door closing mechanisms. This disconnect switch will accept Class H, J, K or R fuses only. It has a rating of 60 Amps up to 250 V and 30 Amps up to 600 V. This 30 A disconnect switch is designed for flange mounting. The variable depth mounting range is 6.63 to 18.00 inches. Disconnect switch has horsepower ratings of 7.5 HP at 208 VAC, 7.5 HP at 240 VAC, 15 HP at 480 VAC and 20 HP at 600 VAC. Switch is also rated for 5 HP at 250 VDC max when using two poles. 9422A1 operating handle is overpacked with this disconnect switch. Disconnect switch lugs are rated for #14 to #2 AWG with copper wire and #10 to #2 with aluminum wire. Switch is UL component recognized and CSA certified.Specifications
- Range
- 9422T
- Product
- Disconnect Switch
- Disconnect Type
- Fusible disconnect switch
- Mounting Type
- Flange rod variable depth
- Current Rating
- 30 A
- Horsepower Rating
- 7.5 hp 200 V AC;7.5 hp 230 V AC;15 hp 460 V AC;20 hp 575 V AC;5 hp 250 V DC
- Fuse Rating
- 60 A 250 V;30 A 600 V
- Handle Type
- 6 in handle included NEMA 1/3/3R/4 enclosures sheet steel
- Fuse Type
- H;K;R;J
- Certifications
- UL Recognized;CSA
- Category
- 21732-9422
- Discount Schedule
- CP1
- GTIN
- 785901872160
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.20 in (18.288 cm)
- Package 1 Width
- 11.10 in (28.194 cm)
- Package 1 Length
- 16.00 in (40.64 cm)
- Package 1 Weight
- 9.00 lb(US) (4.082 kg)
- Warranty
- 18 months
