9422AP1 | OPERATING MECHANISM HANDLE NEMA | Square D by Schneider Electric

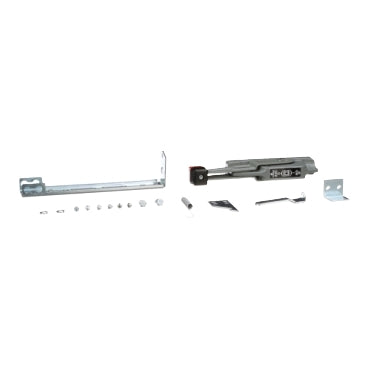

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9422AP1

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Square D 9422AP1 Documents

Datasheet

Overview

Details for 9422AP1

OPERATING MECHANISM HANDLE NEMA

Range of product: 9422A

Product or component type: Handle Mechanism

Product destination: 9422RM1 circuit breaker mechanism,9422CMP circuit breaker mechanism

Handle mechanism is used with circuit breaker variable depth and cable operating mechanisms. Operating handle must be used with 9422RM1, 9422CMP or 9422CSJD (dual cable mechanism) only. Kit contains all of the parts required to mount the handle to the flange of the enclosure. Handle is suitable for right or left hand flange mounting. The handle is 6 inches long. This handle is used on NEMA Type 1, 3, 3R, 4 sheet steel and 12 enclosures. Handle must be used with 9422RM1, 9422CMP or 9422CSJD (dual cable mechanism) only.

Specifications

Product: Handle Mechanism
For Use With: 9422RM1 circuit breaker mechanism;9422CMP circuit breaker mechanism
Product Type: Variable depth
product destination: 9422CMP circuit breaker mechanism;9422RM1 circuit breaker mechanism
Enclosure Types: NEMA 1/3/3R/4/12 enclosures
Handle Length: 6 in (152.40 mm)
Category: 21732-9422
Discount Schedule: CP1
GTIN: 785901834045
Returnability: Yes
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.80 in (4.572 cm)
Package 1 Width: 3.80 in (9.652 cm)
Package 1 Length: 9.40 in (23.876 cm)
Package 1 Weight: 2.82 lb(US) (1.279 kg)
Warranty: 18 months
