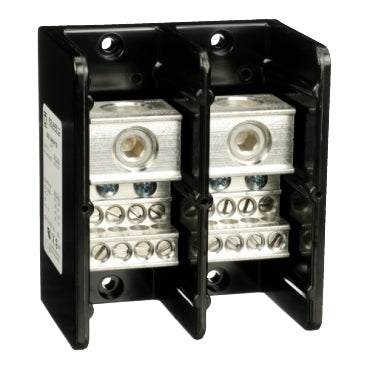

POWER DISTRIBUTION BLOCK 600V
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This two pole block has one lug opening on the line (main) side and eight lug openings on the load (branch) side. The line side lug is rated to accept one #4 to 600 kcmil copper or aluminum wire. The load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.Specifications
- Range
- 9080LB
- Product
- Power Distribution Block
- Current Rating
- 335 A copper;270 A aluminium
- Short Circuit Current Rating
- 65 kA
- Voltage Rating
- 600 V AC/DC
- Mounting Type
- Surface mount
- number of poles
- 2
- Terminals per Pole
- 1 line;8 load
- Wire Size
- Line 1;AWG 4...600 kcmil;copper or aluminium;Load 8;AWG 14...AWG 2;copper or aluminium
- Electrical Connection
- Tin plated aluminium lugs
- SCCR
- 100 kA UL 508 A
- Ambient air temperature for operation
- -40…302 °F (-40…150 °C)
- Block Material
- Phenolic block
- Terminal Tightening Torque
- Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium;Line lug 275 lbf.in (31.07 N.m) AWG 6...400 kcmil copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14...AWG 10 copper or aluminium
- wire stripping length
- Line 1.06 in (26.92 mm);Load 0.56 in (14.22 mm) top;Load 1 in (25.40 mm) bottom
- Height
- 4.75 in (120.65 mm)
- Width
- 4.16 in (105.66 mm)
- Depth
- 2.91 in (73.91 mm)
- End Barrier
- 9080LB42
- Certifications
- CSA file 70361 class 6228 01;UL recognized E60616 CCN XCFR2;CE
- Category
- 21711-9080 LB
- Discount Schedule
- CP1
- GTIN
- 785901157021
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.50 in (8.89 cm)
- Package 1 Width
- 5.10 in (12.954 cm)
- Package 1 Length
- 6.30 in (16.002 cm)
- Package 1 Weight
- 27.04 oz (766.571 g)
- Warranty
- 18 months
