9080LBA163104 | Linergy power distribution block, 1 pole, 1 line, 4 load, 600 V 335 A CU / 600 V 270 A AL | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9080LBA163104
Documents and manuals
Square D 9080LBA163104 Documents
Overview
Details for 9080LBA163104

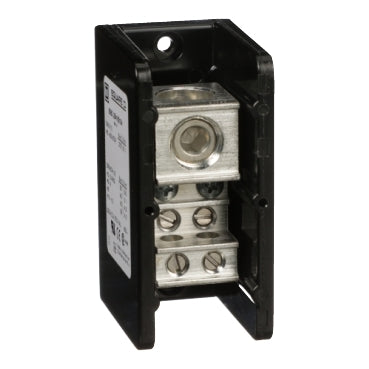

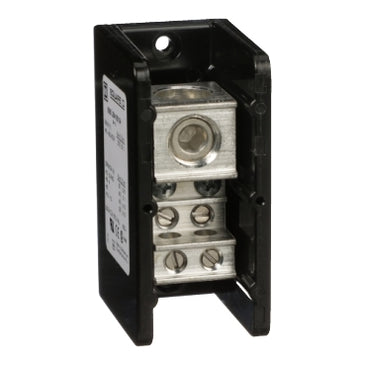

Linergy power distribution block, 1 pole, 1 line, 4 load, 600 V 335 A CU / 600 V 270 A AL
Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has one lug opening on the line (main) side and four lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 400 kcmil copper or aluminum wire. Each load side lug is rated to accept one #14 to #2 copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 335 amperes with copper wire and 270 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.Specifications
- Range
- 9080LB
- Product
- Power Distribution Block
- Current Rating
- 335 A copper;270 A aluminium
- Short Circuit Current Rating
- 65 kA
- Voltage Rating
- 600 V AC/DC
- Mounting Type
- Surface mount
- number of poles
- 1
- Terminals per Pole
- 1 line;4 load
- Wire Size
- Line 1;AWG 6...400 kcmil;copper or aluminium;Load 4;AWG 14...AWG 2;copper or aluminium
- Electrical Connection
- Tin plated aluminium lugs
- SCCR
- 100 kA UL 508 A
- Ambient air temperature for operation
- -40…302 °F (-40…150 °C)
- Block Material
- Phenolic block
- Terminal Tightening Torque
- Load lug 45 lbf.in (5.08 N.m) AWG 6...AWG 4 copper or aluminium;Load lug 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 14 copper;Line lug 275 lbf.in (31.07 N.m) AWG 6...350 kcmil copper or aluminium;Load lug 50 lbf.in (5.65 N.m) AWG 2 copper or aluminium;Load lug 35 lbf.in (3.95 N.m) AWG 12...AWG10 copper or aluminium
- wire stripping length
- Line 1.06 in (26.92 mm);Load 0.56 in (14.22 mm) top;Load 1 in (25.40 mm) bottom
- Height
- 3.38 in (85.85 mm)
- Width
- 1.94 in (49.28 mm)
- Depth
- 2.61 in (66.29 mm)
- End Barrier
- 9080LB31
- Certifications
- UL recognized E60616 CCN XCFR2;CE;CSA file 70361 class 6228 01
- Category
- 21711-9080 LB
- Discount Schedule
- CP1
- GTIN
- 785901156949
- Returnability
- Yes
- Country of origin
- US
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.90 in (4.826 cm)
- Package 1 Width
- 2.60 in (6.604 cm)
- Package 1 Length
- 3.90 in (9.906 cm)
- Package 1 Weight
- 10.08 oz (285.763 g)
- Warranty
- 18 months
