9070T250D23 | Transformer, Type T, industrial control, 250 VA, 120/240 VAC primary / 24 VAC secondary, 1 phase, 50/60 Hz, 80 °C rise | Square D by Schneider Electric

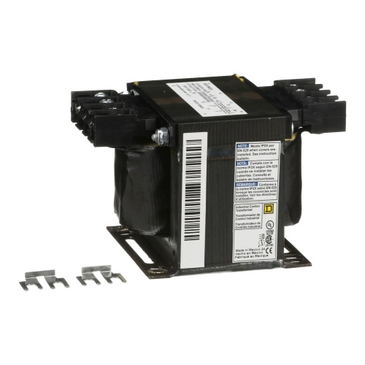

Square D | 9070T250D23

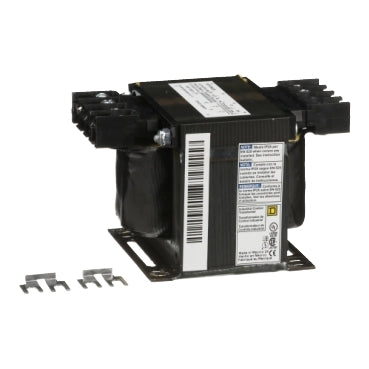

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9070T250D23
Jump to: DocumentsOverview SpecificationsReviews

Documents and manuals

Square D 9070T250D23 Documents

Datasheet

Overview

Details for 9070T250D23

Transformer, Type T, industrial control, 250 VA, 120/240 VAC primary / 24 VAC secondary, 1 phase, 50/60 Hz, 80 °C rise

Specifications

Product Type
Industrial Control Transformer
Power Rating
250 VA
Type
T
Number of Phases
1 phase
Power Rating
250 VA UL;250 VA CSA;250 VA NOM;160 VA
Temperature Rise
80 °C
Electrical Connection
Screw clamp terminals
Height
3.2 in (81.28 mm)
Width
3.75 in (95.25 mm)
Depth
5.3 in (134.62 mm)
Material
Copper winding
Fingersafe Cover Compatibility
FSC2
Certifications
UL listed file E61239;CSA file LR37055 guide 184-N-90
Enclosure Type
Not rated (open device)
Insulation Temperature
266 °F (130 °C)
Category
16201-9070 T (NOT TF) 250-2000VA
Discount Schedule
CP8
GTIN
785901905134
Number of Units in Package 1
1
Package 1 Weight
7.94 lb(US) (3.602 kg)
Returnability
Yes
Country of origin
MX
Unit Type of Package 1
PCE
Package 1 Height
3.28 in (8.331 cm)
Package 1 Width
5.30 in (13.462 cm)
Package 1 Length
3.75 in (9.525 cm)
Unit Type of Package 2
PAL
Number of Units in Package 2
150
Package 2 Weight
1192.00 lb(US) (540.682 kg)
Package 2 Height
40.00 in (101.6 cm)
Package 2 Width
40.00 in (101.6 cm)
Package 2 Length
48.00 in (121.92 cm)
Warranty
10 Years
