9002AW11 | FOOT SWITCH 1 POLE WITHOUT COVER | Square D by Schneider Electric

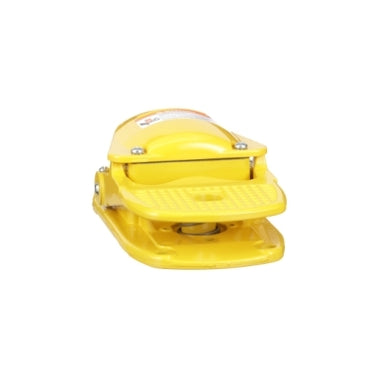

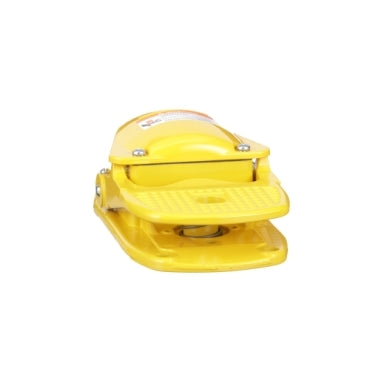

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 9002AW11
Documents and manuals
Square D 9002AW11 Documents
Overview
Details for 9002AW11
FOOT SWITCH 1 POLE WITHOUT COVER
Foot Switch, Harmony, industrial, unshielded, maintained contact, 3A at 230 VAC, SPST contact, NEMA 2, 4, 13 enclosure 9002AW NEMA industrial foot switches are heavy duty devices to be used to control many industrial processes, while leaving the operator's hands free to perform other functions. The type or model of foot switch suitable for each application will vary depending on many factors. This foot switch has no shielding. This foot switch has maintained contacts. Sometimes referred to as Push on / Push off. The single pole single throw (SPST) snap switches used for the contacts of this foot switch is rated at 10A inductive at 600 VAC. For other contact ratings, refer to the catalog. This foot switch is operated by stepping on the foot pedal to activate and push the foot pedal again to release it. Foot switch has an enclosure rating of NEMA 2, 4 and 13. The cable entry for this foot switch has a 0.75 inch NPT conduit tread. Foot switch is UL listed and CSA certified.Specifications
- Range
- 9002AW
- Product
- Foot switch
- Contact Operation
- 1 step
- Certifications
- CSA;UL Listed
- Cable Entry
- 0.75 inch NPT conduit entrance
- Contact Arrangement
- SPST
- Enclosure Rating
- NEMA 2/4/13
- Voltage Rating
- 600 V AC/DC
- Protection
- Unshielded
- Operator Action
- Maintained
- Rated Breaking Capacity
- 6 A 115 V AC inductive control circuit UL 508;3 A 230 V AC inductive control circuit UL 508;2.2 A 125 V DC inductive control circuit UL 508;2.2 A 125 V DC resistive control circuit UL 508;1.1 A 250 V DC inductive control circuit UL 508;1.1 A 250 V DC resistive control circuit UL 508
- Height
- 3.90 in (99 mm)
- Width
- 4.49 in (114 mm)
- Depth
- 8.50 in (216 mm)
- Category
- 21441-9002 AW FOOT SWITCHES
- Discount Schedule
- CS1
- GTIN
- 785901816737
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.39 in (8.6 cm)
- Package 1 Width
- 5.00 in (12.7 cm)
- Package 1 Length
- 9.49 in (24.1 cm)
- Package 1 Weight
- 3.00 lb(US) (1.36 kg)
- Warranty
- 18 months
