9001SK1L35GH13 | PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS | Square D

Brand: Square DSKU: 9001SK1L35GH13

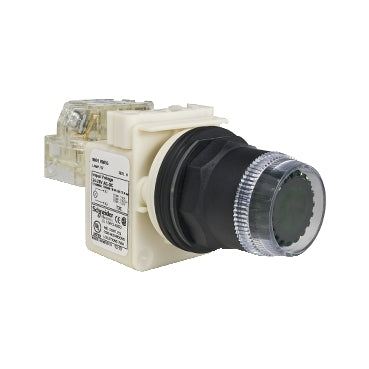

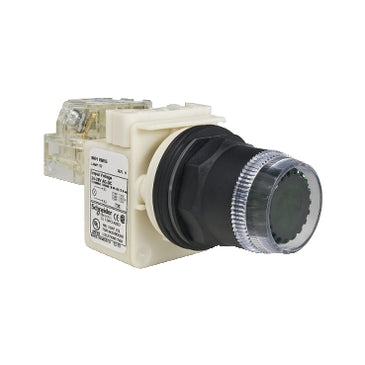

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001SK1L35GH13

Jump to: Overview & Specifications Reviews

Overview Details for 9001SK1L35GH13

PUSHBUTTON 600VAC 10AMP 30MM SK +OPTIONS

This Harmony 9001SK, modular illuminated flush green push button is supplied with a full guard. It has a double insulated plastic bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED and full guard provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001SK
Product or Component Type: Illuminated push-button
device short name: 9001SK
type of operator: spring return
operator profile: Green flush
operator additional information: Plastic guard
light block supply: Direct
bezel material: Plastic
mounting diameter: 1.18 in (30 mm)
light source: incandescent
bulb base: BA 9s
[Us] rated supply voltage: 24...28 V AC/DC
contacts type and composition: 1 C/O
connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² EN/IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) EN/IEC 60947-1
shape of screw head: Cross slotted
mechanical durability: 5000000 cycles
operating position: Any position
[Ie] rated operational current: 0.55 A 125 V;DC-13;A600-Q600 NEMA
[Ui] rated insulation voltage: 250 V 3)EN/IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV EN/IEC 60947-1
contacts material: Silver alloy contacts
contact operation: Standard
short-circuit protection: 10 A cartridge fuse EN/IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Icm] rated short-circuit making capacity: 0.1 kA 240 V DC-13;7200 VA;12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 125 V DC-13;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA;60 kA 250 V DC-13;7200 VA
rated breaking capacity: 1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;0.1 kA 240 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
Net Weight: 0.40 lb(US) (0.181 kg)
device presentation: Complete product
Standards: EN/IEC 60947-1;JIS C 852;EN/IEC 60947-5-4;JIS C 4520;CSA C22.2 No 14;UL 508;EN/IEC 60947-5-1
Product Certifications: NEMA;UL 508
protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
electrical shock protection class: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4;NEMA 4X
Category: 21429-9001 SK;SKY
Discount Schedule: CS1
GTIN: 785901040422
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 2.50 in (6.35 cm)
Package 1 Width: 2.00 in (5.08 cm)
Package 1 Length: 4.50 in (11.43 cm)
Package 1 Weight: 7.47 oz (211.828 g)
Warranty: 18 months
