9001K2L35LYAH13 | PUSH BUTTON 600VAC 10A 30MM | Square D by Schneider Electric

Brand: Square DSKU: 9001K2L35LYAH13

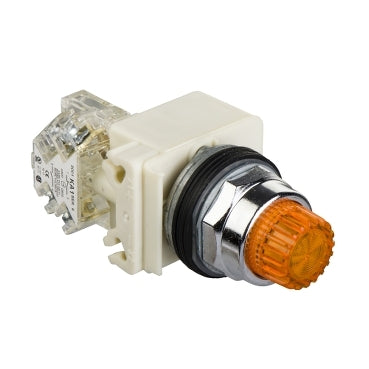

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 9001K2L35LYAH13

Jump to: Overview & Specifications Reviews

Overview Details for 9001K2L35LYAH13

PUSH BUTTON 600VAC 10A 30MM

This Harmony 9001K, modular illuminated projecting amber push button is supplied with contact block. It has a chromium-plated metal bezel and is supplied with a 24V AC/DC integral LED and has 1 x NO + 1 x NC contacts. This illuminated push button with integral LED provides an ergonomic and visual interface for controlling your machines. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents.

Specifications

Range of Product: Harmony 9001K
Product or Component Type: Illuminated push-button
device short name: 9001K
type of operator: spring return
operator profile: Amber projecting;unmarked
operator additional information: Without guard
bezel material: Metal
mounting diameter: 1.18 in (30 mm)
shape of signaling unit head: Octagonal
light source: LED
light source: LED
bulb base: BA 9s
light block supply: Direct
[Us] rated supply voltage: 24...28 V AC/DC
contacts type and composition: 1 C/O
connections - terminals: Screw clamp terminals 1 x 0.22...2 x 1.5 mm² IEC 60947-1
tightening torque: 7.08 lbf.in (0.8 N.m) IEC 60947-1
shape of screw head: Cross slotted
mechanical durability: 5000000 cycles
operating position: Any position
[Ui] rated insulation voltage: 250 V 3)IEC 60947-1
[Uimp] rated impulse withstand voltage: 2.5 kV IEC 60947-1
contacts material: Silver alloy contacts
contact operation: Standard
positive opening: Without
short-circuit protection: 10 A cartridge fuse IEC 60947-5-1
[Ith] conventional free air thermal current: 10 A
[Icm] rated short-circuit making capacity: 12 kA 600 V AC-15;7200 VA;15 kA 480 V AC-15;7200 VA;30 kA 240 V AC-15;7200 VA;60 kA 120 V AC-15;7200 VA
rated breaking capacity: 1.2 kA 600 V AC-15;720 VA;1.5 kA 480 V AC-15;720 VA;3 kA 240 V AC-15;720 VA;6 kA 120 V AC-15;720 VA;0.1 kA 600 V DC-13;0.27 kA 250 V DC-13;0.55 kA 125 V DC-13
CAD overall width: 2.13 in (54 mm)
CAD overall height: 1.65 in (42 mm)
CAD overall depth: 4.06 in (103 mm)
terminals description ISO n°1: (13-14-11-12)OF
Net Weight: 0.37 lb(US) (0.166 kg)
device presentation: Complete product
Standards: EN/IEC 60947-5-4;JIS C 4520;JIS C 852;EN/IEC 60947-1;EN/IEC 60947-5-1;UL 508;CSA C22.2 No 14
Product Certifications: UL 508;NEMA
protective treatment: TC
Ambient Air Temperature for Storage: -40…158 °F (-40…70 °C)
Ambient Air Temperature for Operation: -13…158 °F (-25…70 °C)
vibration resistance: 7 gn 2…500 Hz)IEC 60068-2-6
shock resistance: 50 gn IEC 60068-2-27
overvoltage category: Class II IEC 61140
IP degree of protection: IP66 IEC 60529
NEMA degree of protection: NEMA 1;NEMA 12;NEMA 13;NEMA 2;NEMA 3;NEMA 3R;NEMA 4
Category: 21426-9001 K (NOT KA;KM;KX)
Discount Schedule: CS1
GTIN: 3389110925432
Returnability: No
Country of origin: MX
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 1.90 in (4.826 cm)
Package 1 Width: 2.30 in (5.842 cm)
Package 1 Length: 4.50 in (11.43 cm)
Package 1 Weight: 8.00 oz (226.796 g)
Warranty: 18 months
