8538SBA23V02S | NEMA Combination Starter, Type S, 30A fusible disconnect, Size 0, 18A, 5 HP at 600 VAC polyphase, 120 VAC coil, NEMA 12 | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8538SBA23V02S
Documents and manuals
Square D 8538SBA23V02S Documents
Overview
Details for 8538SBA23V02S

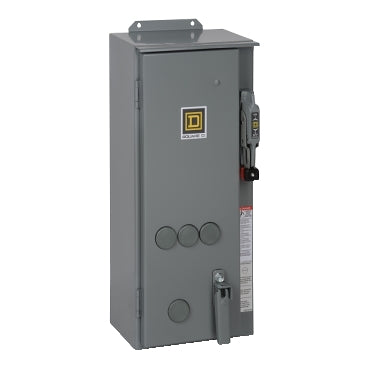

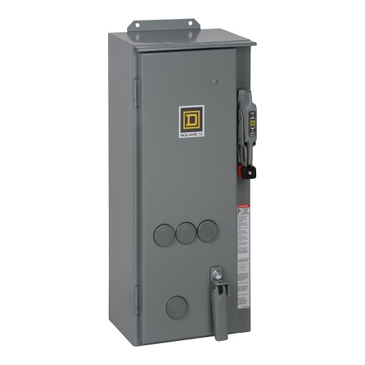

NEMA Combination Starter, Type S, 30A fusible disconnect, Size 0, 18A, 5 HP at 600 VAC polyphase, 120 VAC coil, NEMA 12
Type S non-reversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 0 starters have ratings of 5 HP at 460 and 575 VAC. Combination starter has a 30 Amp Class H fuse clip. Combination starter has a 30 Amp Class H fuse clip. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 12/3R dust tight and drip tight enclosure is used to protect this combination starter. Enclosure is 24.00 inches tall, 9.50 inches wide and 8.34 inches deep. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.Specifications
- Product
- Combination Starter
- Type
- S
- Control Circuit Type
- Separate control circuit
- Control Circuit Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- Starter Type
- Non reversing
- Number of Poles
- 3P
- Horsepower Rating
- 5 hp 460 V AC;3 phase;5 hp 575 V AC;3 phase
- Maximum Voltage Rating
- 600 V AC
- Control Units
- No control units
- Pilot Light
- No indicator
- Auxiliary Contacts
- Without
- thermal overload type
- Melting alloy 3
- Disconnect Type
- Fusible disconnect switch H;30 A
- NEMA size
- 0
- Enclosure Type
- NEMA 12 painted sheet steel with external reset
- Category
- 21212-8538;39SB(NOT S*R;S*T;S*W)
- Discount Schedule
- CP1
- GTIN
- 785901743965
- Returnability
- No
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 11.00 in (27.94 cm)
- Package 1 Width
- 12.80 in (32.512 cm)
- Package 1 Length
- 28.80 in (73.152 cm)
- Package 1 Weight
- 37.54 lb(US) (17.028 kg)
- Warranty
- 18 months
