Details for 8536SEG1V02H30S

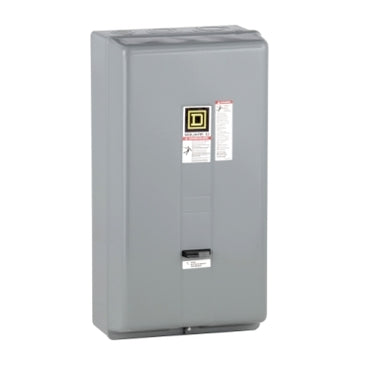

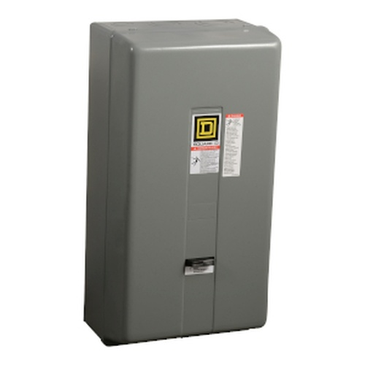

Non-Reversing Starter Size 3, 3-Pole, Motor Logic SSOLR, NEMA 1 +Options
Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 3 non-reversing starter has a 90 ampere rating. This NEMA Size 3 motor starter has 3 phase ratings of 25 HP at 200 VAC, 30 HP at 230 VAC and 50 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a Motor Logic overload relay with a 30A to 90A range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 21.81 inches tall, 11.44 inches wide and 8.38 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.Specifications
- Product Type
- Motor starter
- Product Range
- S
- Starter Type
- Non reversing
- NEMA Size
- 3
- Rated Current
- 90 A
- Number of Poles
- 3P
- Maximum Voltage Rating
- 600 V AC
- Phase
- 3 phase
- Type of Overload
- Solid state Motor Logic class 10/20
- Horsepower Rating
- 25 HP 200 V AC;30 HP 230 V AC;50 HP 460 V AC;50 HP 575 V AC
- SCCR
- Circuit-breaker 150 A maximum: 100 kA at 480 V AC;Fuse J 200 A maximum: 100 kA at 600 V AC;Fuse T 200 A maximum: 100 kA at 600 V AC;Fuse RK1 200 A maximum: 100 kA at 600 V AC;Fuse RK5 200 A maximum: 100 kA at 600 V AC
- Coil Voltage
- 110 V AC 50 Hz;120 V AC 60 Hz
- Control Circuit Type
- Separate control circuit
- Control Units
- No control units
- Pilot Light
- Without pilot light
- Auxiliary Contacts
- Without
- Terminal Type
- Screw clamp terminals
- Height
- 21.81 in (553.97 mm)
- Width
- 11.44 in (290.58 mm)
- Depth
- 8.38 in (212.85 mm)
- Enclosure Type
- NEMA 1 painted sheet steel
- Certifications
- UL Listed;CSA;NEMA
- Category
- 21193-8502;36 SE;SF(NOT S*R;T;W)
- Discount Schedule
- CP1
- GTIN
- 785901763628
- Returnability
- Yes
- Country of origin
- MX
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.10 in (23.114 cm)
- Package 1 Width
- 12.00 in (30.48 cm)
- Package 1 Length
- 22.50 in (57.15 cm)
- Package 1 Weight
- 35.82 lb(US) (16.248 kg)
- Warranty
- 18 months
