8501XDO80V66 | NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 8 normally open contacts, 230/250 VDC coil | Square D
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
62% OFF LIST PRICE List $918.00

Web Price:

$346.99
Availability: This product is currently available to purchase
Add 1 more to save 2%
Orders over $599 ship FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs. Shipping and Returns Terms
Ship to Estimates
Are you from Chicago?
Yes / No
This item ships to
Change
Cancel


*shipping cost are estimated until you complete your order

Special Notes
The product is not cancelable or returnable unless found defective
Volume pricing — discount applies automatically at checkout
Quantity
Price Each
Additional Off
2+
$340.06
2%
5+
$329.65
5%
10+
$312.30
10%
30+
Call us for discounted pricing

Volume breaks above are automatic up to 30 units. Beyond that, our team quotes project pricing on this line every day — reach out before you order for a custom quote.

Call (847) 773-0645Get a Quote

Speak With a Technical Expert

Image for Technical Expert

Hours: 9am - 4pm CDT M-F

Call (847) 773-0645

Documents: 8501XDO80V66

Datasheet

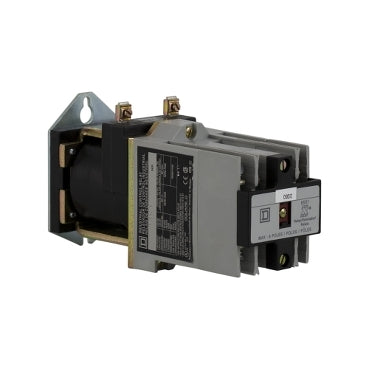

8501XDO80V66 | NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 8 normally open contacts, 230/250 VDC coil | Square D

Brand: Square DSKU: 8501XDO80V66
Square D | 8501XDO80V66
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8501XDO80V66
Jump to: Overview & Specifications Reviews

Overview Details for 8501XDO80V66

NEMA Control Relay, Type X, machine tool, 10A resistive at 600 VAC, 8 normally open contacts, 230/250 VDC coil

8501X NEMA machine tool relays combine a rugged heavy duty design with modular construction for greater flexiblity.RS miniature plug in relays are designed control circuit logic applications. They are ideal for applications where long life, high reliablity and ease of maintence are important. The 8501X relay family offers a complete line of relays and accessories for most control applications. The relays feature straight through wiringwhich make wiring easier. Plug in contact cartridges makes contact conversion or replacement very easy. Contact conversion or replacement can be done without removing any wiring. The replaceable coils are available in a wide variety of voltages. 8501X NEMA machine tool relays are UL Listed and CSA Certified.

Specifications

Range
8501X
Relay Type
Control
Product
Relay
Current Rating
10 A AC;5 A DC
Coil Voltage
230/250 V DC
control circuit voltage limits
Operational 0.8...1.1 Uc DC
rated breaking capacity
6 A 120 V AC inductive control circuit UL 508;3 A 240 V AC inductive control circuit UL 508;1.5 A 480 V AC inductive control circuit UL 508;1.2 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC resistive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
[Icm] rated short-circuit making capacity
60 A 120 V AC inductive control circuit UL 508;30 A 240 V AC inductive control circuit UL 508;15 A 480 V AC inductive control circuit UL 508;12 A 600 V AC inductive control circuit UL 508;10 A <= 600 V AC resistive control circuit UL 508;1.1 A 125 V DC inductive control circuit UL 508;0.55 A 250 V DC inductive control circuit UL 508;0.2 A 301...600 V DC inductive control circuit UL 508;4 A 125 V DC inductive control circuit UL 508;0.8 A 250 V DC resistive control circuit UL 508
inrush power in W
18 W
Hold-in Power Consumption in W
18 W
operating time
37 ms - pick-up;21 ms - drop-out
Contact Configuration
8 NO 8 standard contact cartridges
Electrical Connection
Screw clamp terminals
AWG gauge
AWG 18...AWG 12 copper
tightening torque
Control circuit 9.03…12.04 lbf.in (1.02…1.36 N.m) screw terminals
Mounting Type
Panel
Height
3.56 in (90.42 mm)
Width
2.23 in (56.64 mm)
Depth
6.37 in (161.80 mm)
Operating Temperature
-40…160 °F (-40…71 °C)
Certifications
CSA LR60905 class 3211 03;UL listed file E78403 CCN NKCR
Category
21157-8501 XDO (DC)
Discount Schedule
CP2
GTIN
785901018131
Returnability
No
Country of origin
MX
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Package 1 Height
3.54 in (9.0 cm)
Package 1 Width
4.72 in (12.0 cm)
Package 1 Length
9.25 in (23.5 cm)
Package 1 Weight
4.00 lb(US) (1.814 kg)
Warranty
18 months
