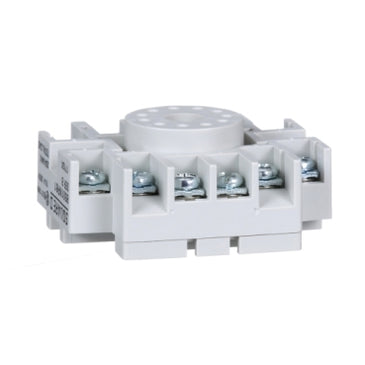

8501NR61 | RELAY SOCKET | Square D by Schneider Electric
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 8501NR61
Documents and manuals
Square D 8501NR61 Documents
Overview
Details for 8501NR61
RELAY SOCKET
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To make wiring easier the terminals are not stacked. 8501NR plug in relay sockets are UL component recognized and CSA certified.Specifications
- product range
- 8501N
- product type
- Relay Socket
- pin shape
- Tubular
- number of pins
- 11
- [In] rated current
- 15 A 300 V AC;5 A 600 V AC
- electrical connection
- Single tiered screw clamp terminals
- mounting type
- Panel;DIN rail
- package quantity
- 1
- certifications
- UL Recognized;CSA;CE
- Height
- 2.16 in (54.8 mm)
- Width
- 2.32 in (59 mm)
- Depth
- 0.97 in (24.6 mm)
- Category
- 21142-8501 N
- Discount Schedule
- CP2
- GTIN
- 785901583677
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.10 in (2.794 cm)
- Package 1 Width
- 2.40 in (6.096 cm)
- Package 1 Length
- 2.30 in (5.842 cm)
- Package 1 Weight
- 2.24 oz (63.503 g)
- Warranty
- 18 months
