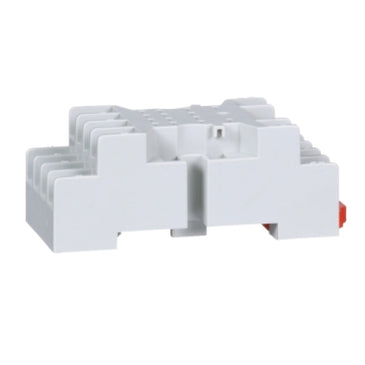

RELAY SOCKET TYPE R
8501NR plug in relay sockets are designed for the proper wiring of 8501R plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501RS14, 8501RS24 or 8501RS34 relays will plug into this relay socket which is designed for 14 blade pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.Specifications
- product range
- 8501N
- product type
- Relay Socket
- pin shape
- Spade
- number of pins
- 14
- [In] rated current
- 10 A 300 V AC
- electrical connection
- Double tiered screw clamp terminals
- mounting type
- Panel;DIN rail
- package quantity
- 1
- certifications
- UL Recognized;CSA;CE
- Height
- 2.72 in (69 mm)
- Width
- 1.21 in (30.7 mm)
- Depth
- 1.00 in (25.4 mm)
- Category
- 21142-8501 N
- Discount Schedule
- CP2
- GTIN
- 785901583660
- Returnability
- Yes
- Country of origin
- CN
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.10 in (2.794 cm)
- Package 1 Width
- 1.30 in (3.302 cm)
- Package 1 Length
- 2.80 in (7.112 cm)
- Package 1 Weight
- 1.76 oz (49.895 g)
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 3800
- Package 2 Height
- 40.00 in (101.6 cm)
- Package 2 Width
- 40.00 in (101.6 cm)
- Package 2 Length
- 48.00 in (121.92 cm)
- Package 2 Weight
- 418.00 lb(US) (189.601 kg)
- Warranty
- 18 months
