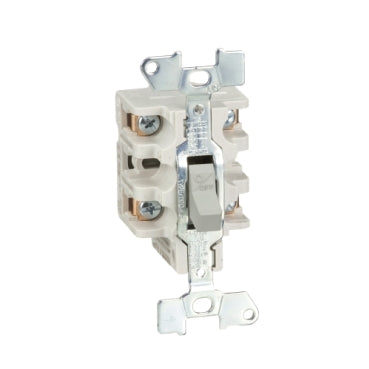

2510KO1 | Single Unit Manual Switch, 30A, Open, Oversized, 2-Pole, Toggle Operated, No Indicator, 600VAC | Square D by Schneider Electric

Single Unit Manual Switch, 30A, Open, Oversized, 2-Pole, Toggle Operated, No Indicator, 600VAC

Single Unit Manual Switch

• Line Rated Current: 30A
• Motor Power HP: 3 HP at 460V AC; 2 HP at 230V AC, 115V AC; 3 HP at 575V AC; 1 HP at 90V DC; 2 HP at 115V DC; 1.5 HP at 230V DC
• System Voltage: 600V AC, 230V DC
• Poles Description: 2-Pole
• Control Type: Toggle Switch
• Number of Phases: 1-Phase
• Local Signaling: No Indicator
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

Square D 2510K motor starting switches provide compact manual On Off control of single or three phase motors or resistance heating loads up to 600 VAC, where overload protection is not required or provided separately. Open type fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Pilot light option is available. A variety of enclosures are available. Units are UL Recognized and CSA Certified for global applications. The maximum operational voltage is 600 VAC and 250 VDC. This two pole switch is rated for 2 HP at 115VAC, 2 HP at 230VAC, 3 HP at 460VAC, 3 HP at 600VAC single phase, 1 HP at 90 VDC, 2 HP at 115 VDC and 1.5 HP at 230 VDC and 30A continuous. The screw clamp terminals will accept 14 to 10 AWG copper wire. This switch has no pilot light indicator. This manual motor switch is not supplied with an enclosure. This switch is 4.13 inches tall, 1.69 inches wide and 2.34 inches deep. It weighs 0.35 lb. This device is UL Listed and CSA certified.
