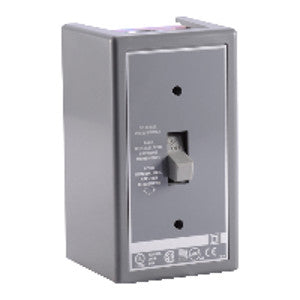

2510FG1 | Fractional Horsepower Manual Starter, 16A, NEMA 1, 1-Pole, Toggle Operated, No Indicator, 277VAC | Square D

Fractional Horsepower Manual Starter, 16A, NEMA 1, 1-Pole, Toggle Operated, No Indicator, 277VAC

Fractional Horsepower Manual Starter

• Line Rated Current: 16A
• Motor Power HP: 1 HP at 115 VAC, 230VAC, 277 VAC
• System Voltage: 277V AC
• Poles Description: 1-Pole
• Control Type: Toggle Switch
• Number of Phases: 1-Phase
• Local Signaling: No Indicator
• Reset: Manual
• Motor Starter Type: Non-Reversing
• Electrical Connection: Screw Clamp Terminals

Square D 2510F fractional motor manual starter provide overload protection and manual On Off control for small single phase AC motors. Open style starter fits industry standard single-gang switch boxes for direct mounting in a wall or machine using any standard cover plate with a standard single cutout. Overload heater element is ordered separately to match motor data. Pilot light option is available. A variety of enclosures are available. Units are UL Listed and CSA Certified for global applications. This 1 pole nonreversing manual starter has a 16A current rating. Starter has a 1 HP rating at 115, 230, and 277 VAC. This NEMA 1 general purpose enclosure is a surface mounting enclosure. This manual starter is 4.25 inches tall, 2.44 inches wide and 2.75 inches deep. It weighs 0.79 lb. This device is without a pilot light indicator. Manual starter is UL listed and CSA certified.
