US2:87MSW6FD | PUMP PANEL | S6 | SSOLR | 208VAC/DC | DISC | Siemens Electrical

Pump control panel, Size 6, H2 Solid-state overload relay, OLR amp range 160-630A, 200-220V 50-60Hz/DC coil, Standard type contactor, 600A fusible disconnect, 600A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: US2:87MSW6FD

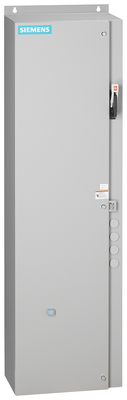

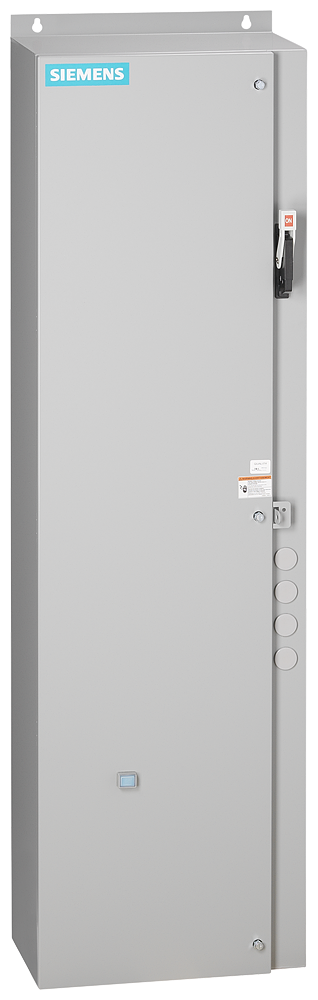

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to US2:87MSW6FD

Jump to: Overview & Specifications Reviews

Overview Details for US2:87MSW6FD

Specifications

Item Number	US2:87MSW6FD
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	2
Number of auxiliary contacts as normally open contact	2
Number of command positions	0
Overload release current setting	160 A
Rated control supply voltage Us at AC 50HZ	200 V
Rated control supply voltage Us at AC 60HZ	200 V
Rated control supply voltage Us at DC	200 V
Release class	CLASS 10
Voltage type for actuating	AC/DC
Weight	240 LB
With short-circuit release	TRUE
With transformer	FALSE
