US2:87JUH6LJ | PUMP PANEL | S4 | SSOLR | 24VAC | DISC | Siemens Electrical

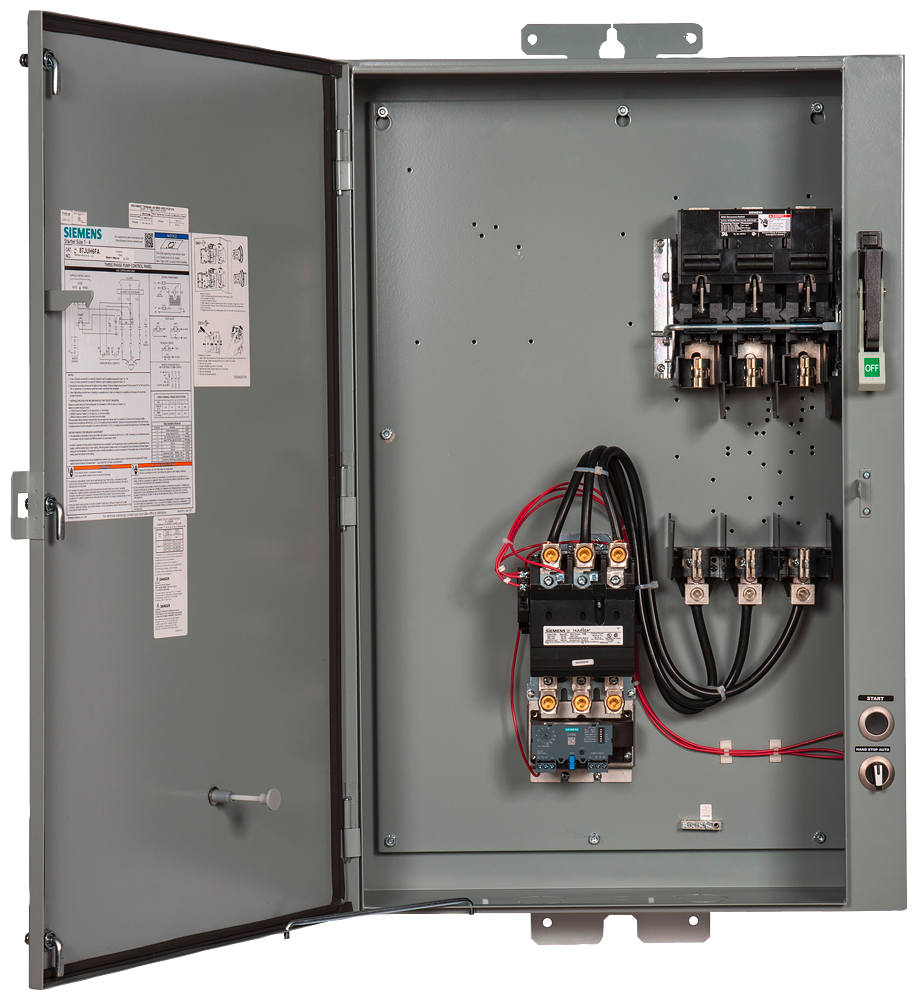

Pump control panel, Size 4, H2 Solid-state overload relay, OLR amp range 50-200A, 24VAC 50-60Hz coil, Standard type contactor, 200A fusible disconnect, 200A/250V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: US2:87JUH6LJ

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to US2:87JUH6LJ

Jump to: Overview & Specifications Reviews

Overview Details for US2:87JUH6LJ

Specifications

Item Number	US2:87JUH6LJ
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	50 A
Rated control supply voltage Us at AC 50HZ	24 V
Rated control supply voltage Us at AC 60HZ	24 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	87 LB
With short-circuit release	TRUE
With transformer	FALSE
