US2:87EUE6FL | PUMP PANEL | S1.75 | SSOLR | 277VAC | DISC | Siemens Electrical

Pump control panel, Size 1 3/4, H2 Solid-state overload relay, OLR amp range 10-40A, 240V 50Hz / 277V 60Hz coil, Standard type contactor, 30A fusible disconnect, 30A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

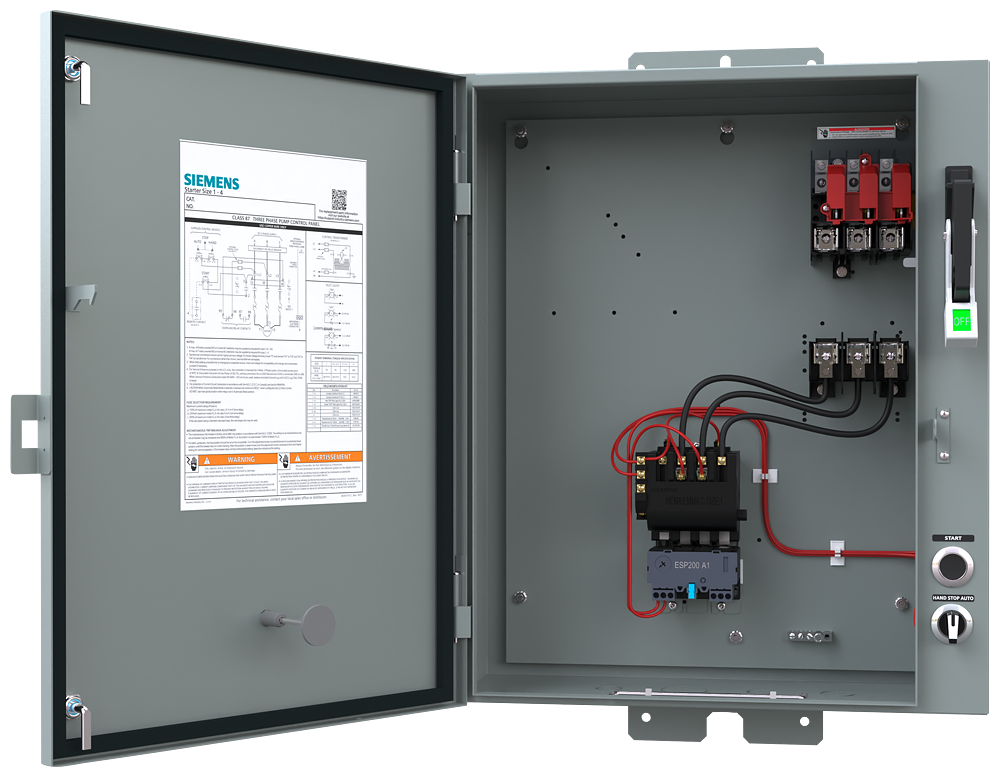

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to US2:87EUE6FL

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Siemens Electrical US2:87EUE6FL Documents

Datasheet

Overview

Details for US2:87EUE6FL

Specifications

Item Number	US2:87EUE6FL
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
freeship	upsground
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.416666666666667
Rated control supply voltage Us at AC 50HZ	240 V
Rated control supply voltage Us at AC 60HZ	277 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	47 LB
With short-circuit release	TRUE
With transformer	FALSE
