Documents: 87HUG60A
87HUG60A | PumpPanel SZ3 | 25-100Amps | N12/3R | Siemens Electrical
Pump control panel, Size 3, H2 Solid-state overload relay, OLR amp range 25-100A, 110-120/220-240VAC 60Hz coil, Standard type contactor, 200A fusible disconnect, 200A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

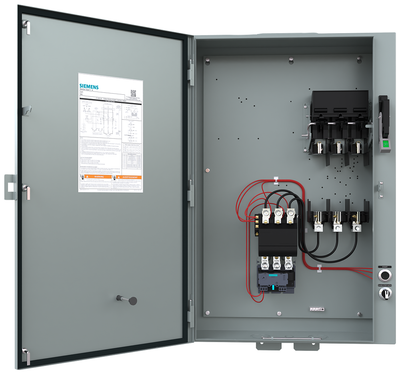

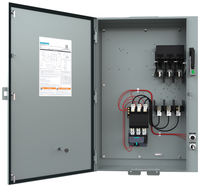

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 87HUG60A
Overview Details for 87HUG60A
Specifications
Item Number | 87HUG60A |
Brand | Siemens Electrical |
Coordination class according to IEC 60947-4-3 | Class 1 |
External reset possible | TRUE |
Kind of motor starter | Other |
Number of auxiliary contacts as normally closed contact | 0 |
Number of auxiliary contacts as normally open contact | 1 |
Number of command positions | 0 |
Overload release current setting | 25 A |
Rated control supply voltage Us at AC 50HZ | 0 V |
Rated control supply voltage Us at AC 60HZ | 110 V |
Rated control supply voltage Us at DC | 0 V |
Release class | Other |
Voltage type for actuating | AC |
Weight | 81 LB |
With short-circuit release | TRUE |
With transformer | FALSE |
