Documents: 87FUF6LC

Datasheet

87FUF6LC | PumpPanel SZ2 | 13-52Amps | 480V | N12/3R | Siemens Electrical

Pump control panel, Size 2, H2 Solid-state overload relay, OLR amp range 13-52A, 220-240/440-480VAC 60Hz coil, Standard type contactor, 60A fusible disconnect, 60A/250V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: 87FUF6LC

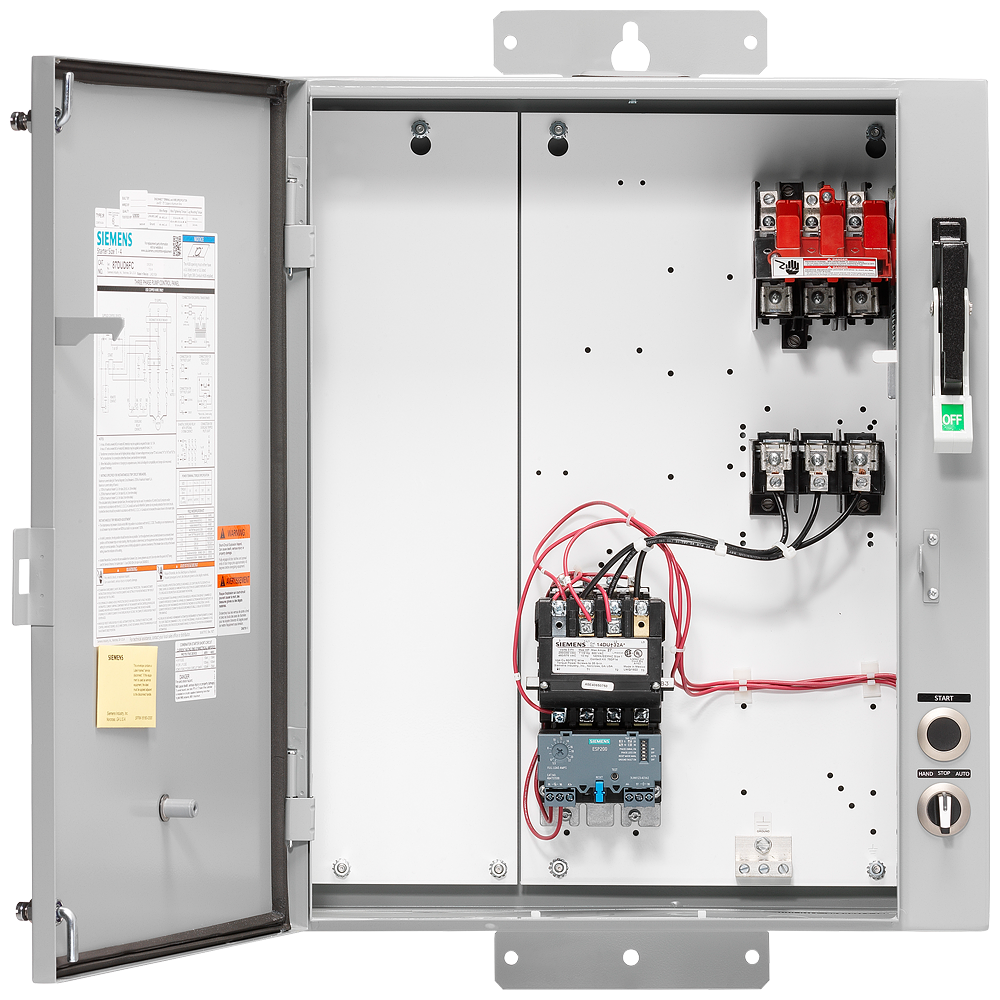

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 87FUF6LC

Jump to: Overview & Specifications Reviews

Overview Details for 87FUF6LC

Specifications

Item Number	87FUF6LC
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
freeship	upsground
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	13 A
Rated control supply voltage Us at AC 50HZ	0 V
Rated control supply voltage Us at AC 60HZ	220 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	48 LB
With short-circuit release	TRUE
With transformer	FALSE
