Documents: 87EUE60F

Datasheet

87EUE60F | PumpPanel SZ1 3/4 | 10-40Amps | N12/3R | Siemens Electrical

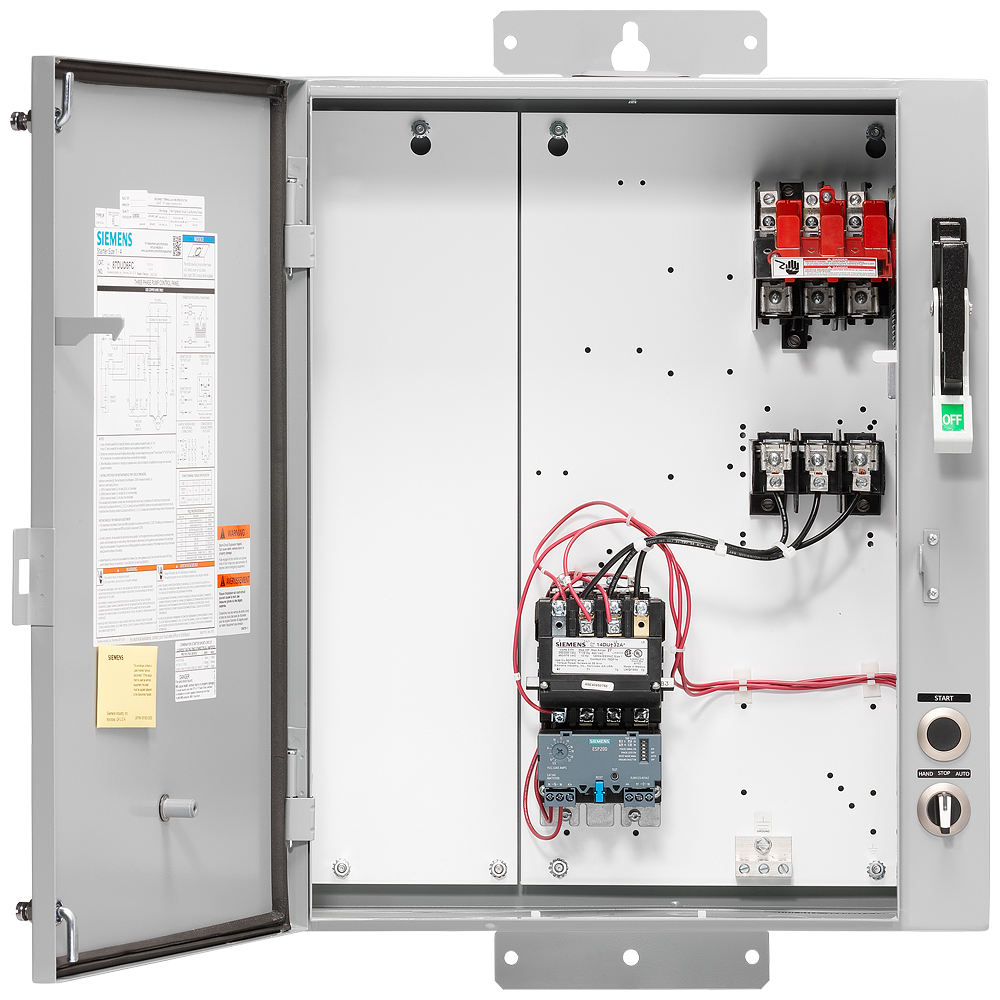

Pump control panel, Size 1 3/4, H2 Solid-state overload relay, OLR amp range 10-40A, 110V 50Hz / 120V 60Hz coil, Standard type contactor, 60A fusible disconnect, 60A/600V fuse clip, HOA Sel Sw. <(><<)>(><(>&<)><(><<)>)> Start P.B., Enclosure NEMA type 3/3R, Weather proof outdoor use

Brand: Siemens ElectricalSKU: 87EUE60F

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 87EUE60F

Jump to: Overview & Specifications Reviews

Overview Details for 87EUE60F

Specifications

Item Number	87EUE60F
Brand	Siemens Electrical
Coordination class according to IEC 60947-4-3	Class 1
External reset possible	TRUE
freeship	upsground
Kind of motor starter	Other
Number of auxiliary contacts as normally closed contact	0
Number of auxiliary contacts as normally open contact	1
Number of command positions	0
Overload release current setting	0.416666666666667
Rated control supply voltage Us at AC 50HZ	110 V
Rated control supply voltage Us at AC 60HZ	120 V
Rated control supply voltage Us at DC	0 V
Release class	Other
Voltage type for actuating	AC
Weight	47 LB
With short-circuit release	TRUE
With transformer	FALSE
